Luminator Message Writer and IPS
Software Fonts and Graphics.
When Luminator created its GTI Matrix signs, it allowed extended creativity in what could be
displayed on its signs over previous models. Having a full width grid of dots rather than a fixed
area for typed characters allowed for the versatility of fonts that were plain or bold face, many
different font sizes, placement variability, and the introduction of dot matrix graphics on their
signs. The ability was continued into later models of Luminator signs, including GTI MegaMAX,
Horizon LED, and Spectrum (full colour) LED signs.

This page is a directory of the various fonts available in the Luminator software, as well as a
directory of all the stock graphics Luminator provided with both their Message Writer (MW) and
IPS software programs.
F O N T S :
File Name:  5VW.fnt  -  Font Style:  5 height, single stroke, variable width
File Name:  5DVW.fnt  -  Font Style:  5 height, double stroke, variable width
File Name:  6VW.fnt  -  Font Style:  6 height, single stroke, variable width
File Name:  6DVW.fnt  -  Font Style:  6 height, double stroke, variable width
File Name:  7VW.fnt  -  Font Style:  7 height, single stroke, variable width
File Name:  5X7.fnt  -  Font Style:  7 height, 5 line fixed width (Used in older 620 / Gulton model signs and on older ODK keypads. Can be used on Matrix signs as well.)
File Name:  7DVW.fnt  -  Font Style:  7 height, double stroke, variable width
File Name:  7DVW5.fnt  -  Font Style:  7 height, double stroke, variable width, but most characters have a width of 5 lines. Meant as a double stroke version of the "5X7" font.
File Name:  8VW.fnt  -  Font Style:  8 height, single stroke, variable width
File Name:  8DVW.fnt  -  Font Style:  8 height, double stroke, variable width
File Name:  9VW.fnt  -  Font Style:  9 height, single stroke, variable width  (This font came with the Luminator IPS software ONLY.)
File Name:  9DVW.fnt  -  Font Style:  9 height, double stroke, variable width
File Name:  10DVW.fnt  -  Font Style:  10 height, double stroke, variable width
File Name:  11DVW.fnt  -  Font Style:  11 height, double stroke, variable width
File Name:  12DVW.fnt  -  Font Style:  12 height, double stroke, variable width
File Name:  13DVW.fnt  -  Font Style:  13 height, double stroke, variable width
File Name:  14DVW.fnt  -  Font Style:  14 height, double stroke, variable width
File Name:  8X14.fnt  -  Font Style:  14 height, double stroke, 8 strip fixed width (Designed for the larger route number section of two-piece split sign sets.)
File Name:  15DVW.fnt  -  Font Style:  15 height, double stroke, variable width

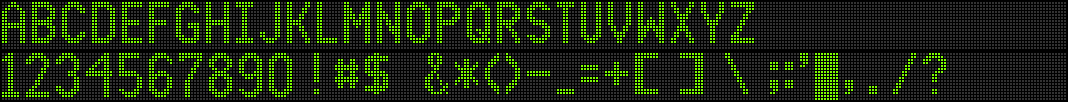

File Name:  16VW.fnt  -  Font Style:  16 height, variable width (Even though it's not actually 16 height, the spacing below each character is part of the character design. This is
the default font for most MegaFront signs. In the older Message Writer program the file name was "F16VW.fnt".)

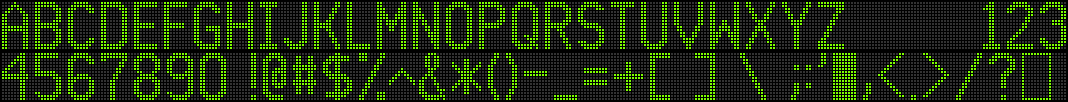

File Name:  16DVW.fnt  -  Font Style:  16 height, double stroke, variable width

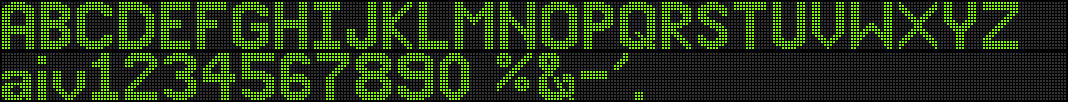

File Name:  Unknown  -  Font Style:  16 height, triple stroke, variable width (From visual confirmation taken directly from the sign displays. Not from a software font.)
ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz
1234567890 !@#$%^&*()-_=+[{]}\|;:'",<.>/?`~
Each font grid has the
characters in this pattern:
(Except where the numbers overflow
to the previous line.)
G R A P H I C S :
(The name below each graphic image is the file name of that graphic: ________.grf )
These are the stock graphics that come with the "Luminator IPS" software:
Along with the IPS graphics, the following were additional ones that came with the older "Message Writer" software:
If the "ABUS" graphic
series was animated:
If the "NASCAR1-4" graphic series was
animated using consecutive exposures:
The "MASK103" graphic was designed as a guide for users who
owned the two-piece "14x28 + 7x75" matrix sign set, for easy formatting.
Special thanks to CHRIS SCHMIDT from Allentown, PA for assistance in filling gaps by supplying photos of missing letters and characters.
