Identicon Corp. Manual Rev. A (Controllers for Ferranti-Packard Displays)
The FP1001 is a microcomputer based Controller developed by Identicon Corp. to display messages on Ferranti-Packard Display
Boards built with single coil XY-2 (and XY-5) display modules. This manual is provided to outline hardware operation, installation and
maintenance information on the FP1001 Display Controller. It contains essential data for OEM purchases as well as precise information
suitable for the maintenance personnel who have little previous training and who will be maintaining the controller/display system.
To see the various Ferranti-Packard sign
panels in my collection, click or tap HERE.
(Including info on Pocatec & Axion signs)
Ferranti-Packard (NEI / Identicon Corp.) displays controller Manual Rev. A - September 15, 1984 - 68 Page Images
Outside
Front Cover.
Click / tap
to enlarge.
Identicon Corp. / FP1001 Display Controller - Outside, Front Cover Page. (Click / tap the X to close.)
Inside Front
Cover Page.
Click / tap
to enlarge.
Identicon Corp. / FP1001 Display Controller - Inside, Front Cover Page. (Click / tap the X to close.)

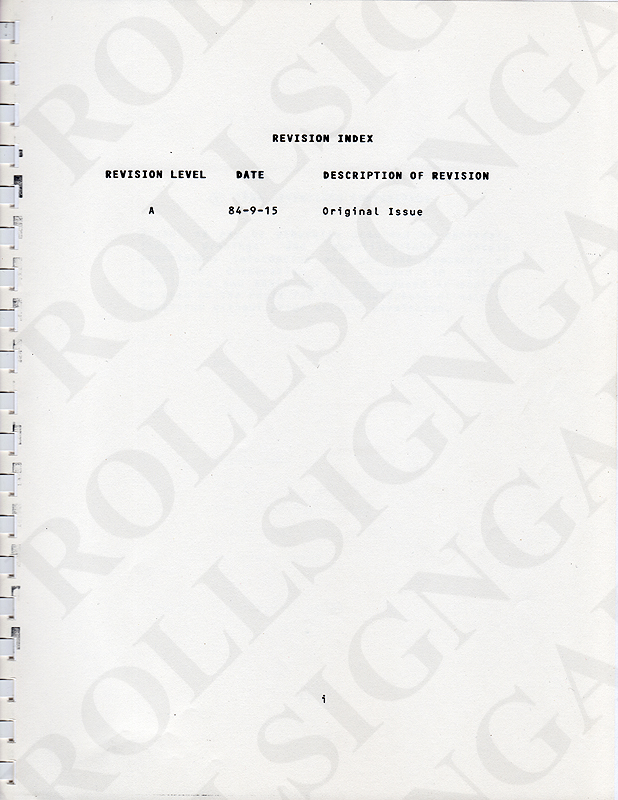

Page i
Revision Index.
Click / tap
to enlarge.
Page i - Revision Index. (Click / tap the X to close.)

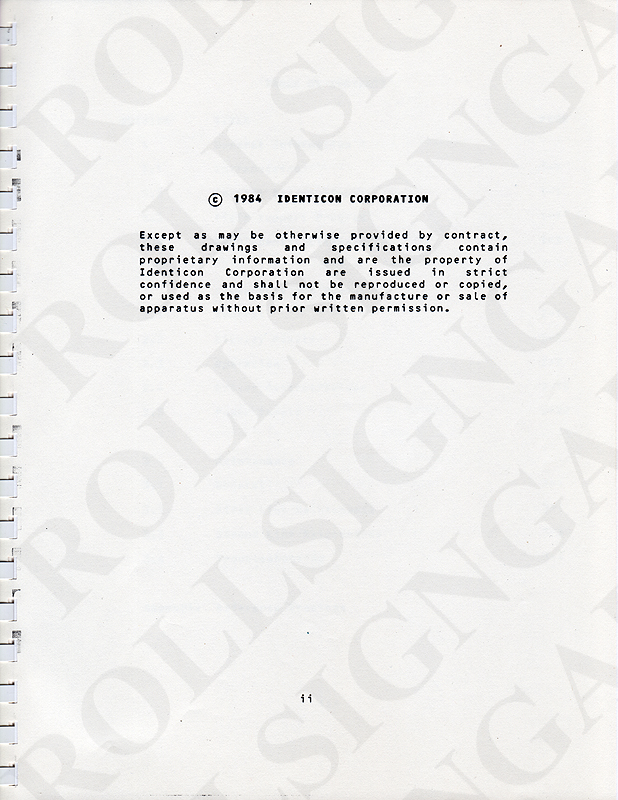

Page ii
Copyright Notice.
Click / tap
to enlarge.
Page ii - Manual Copyright Notice. (Click / tap the X to close.)

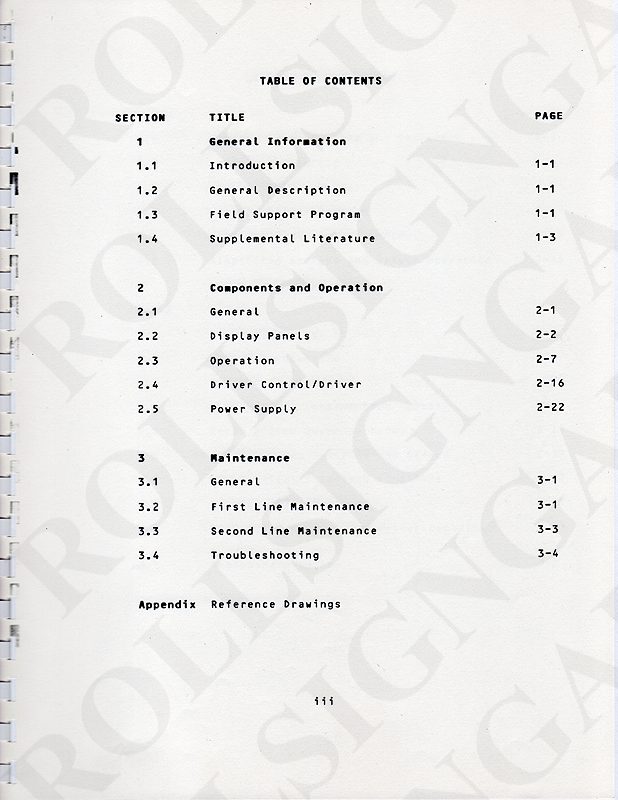

Page iii
Table of
Contents.
Click / tap
to enlarge.
Page iii - Table of Contents. (Click / tap the X to close.)

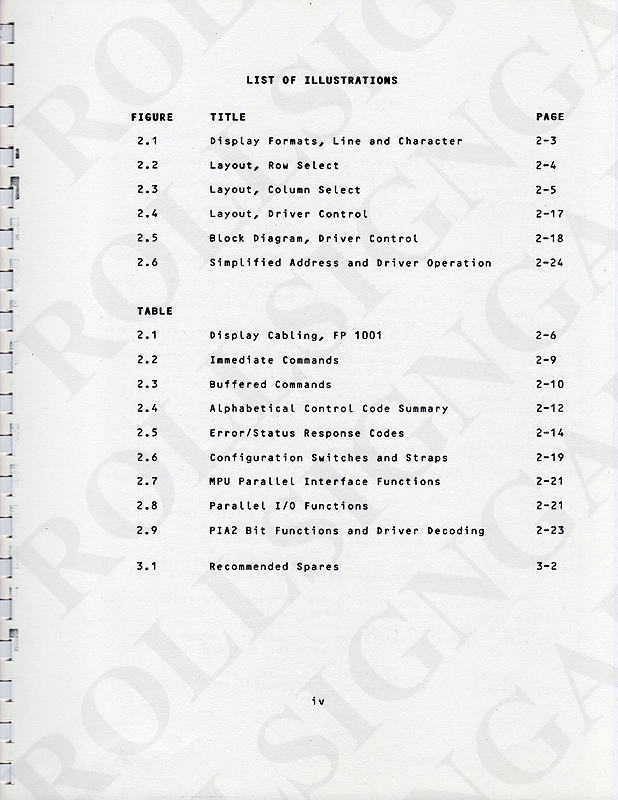

Page iv
List of
Illustrations
and Tables.
Click / tap
to enlarge.
Page iv - List of Illustrations and Tables. (Click / tap the X to close.)
Page 1-1
Introduction, General
Information, Field
Support Program.
Click / tap
to enlarge.
Page 1-1 - Introduction, General Information, Field Support Program. (Click / tap the X to close.)

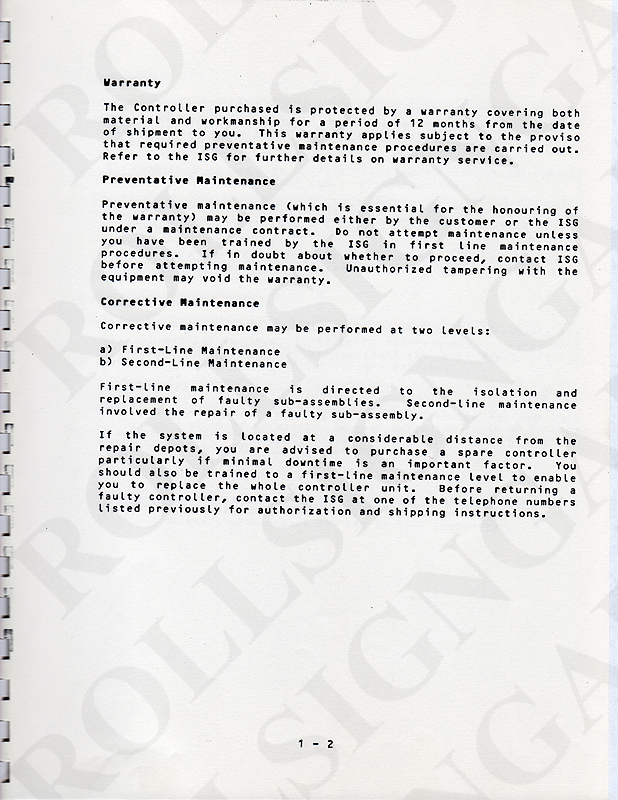

Page 1-2
Warranty,
Preventative and
Corrective
Maintenance.
Click / tap to enlarge.
Page 1-2 - Warranty, Preventative Maintenace, Corrective Maintenance. (Click / tap the X to close.)

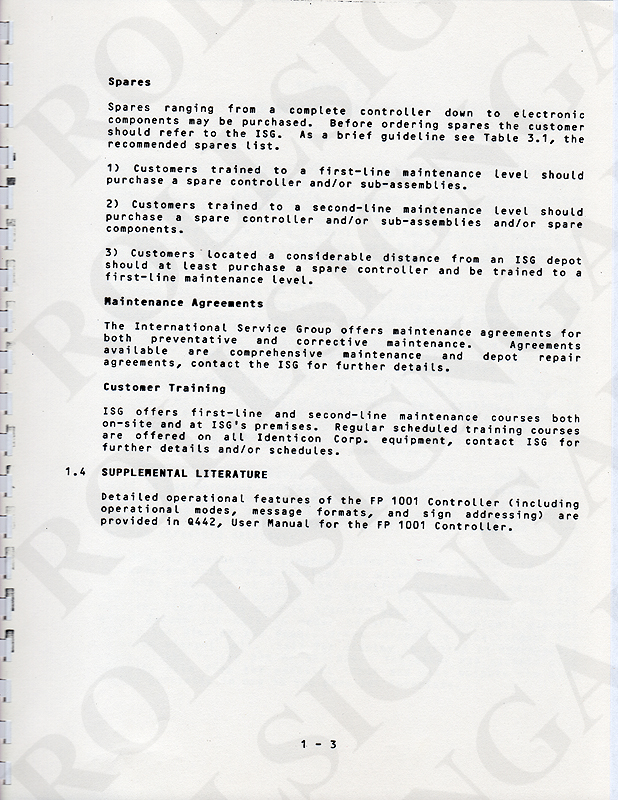

Page 1-3
Spares,
Supplemental
Literature.
Click / tap
to enlarge.
Page 1-3 - Spares, Supplemental Literature. (Click / tap the X to close.)

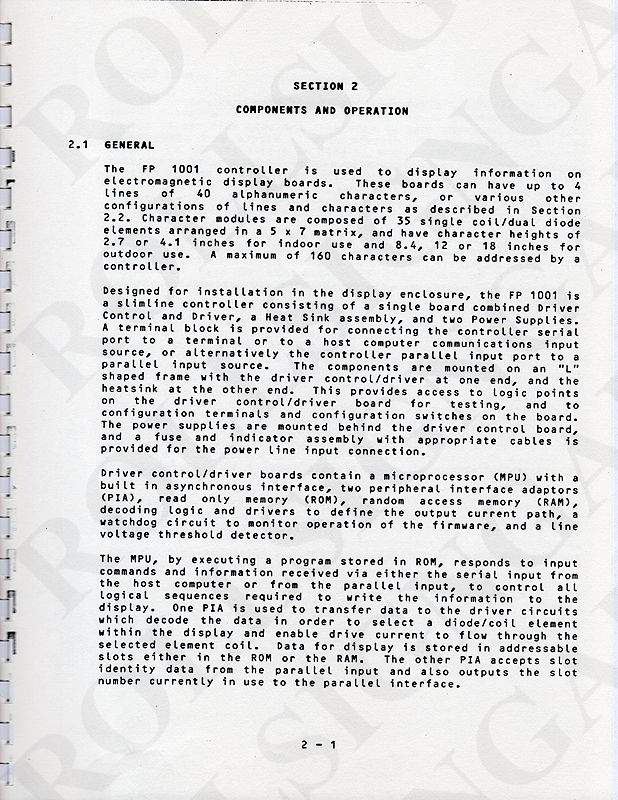

Page 2-1
Section 2:
Components and
Operation: General.
Click / tap
to enlarge.
Section 2: Components and Operation: General. (Click / tap the X to close.)

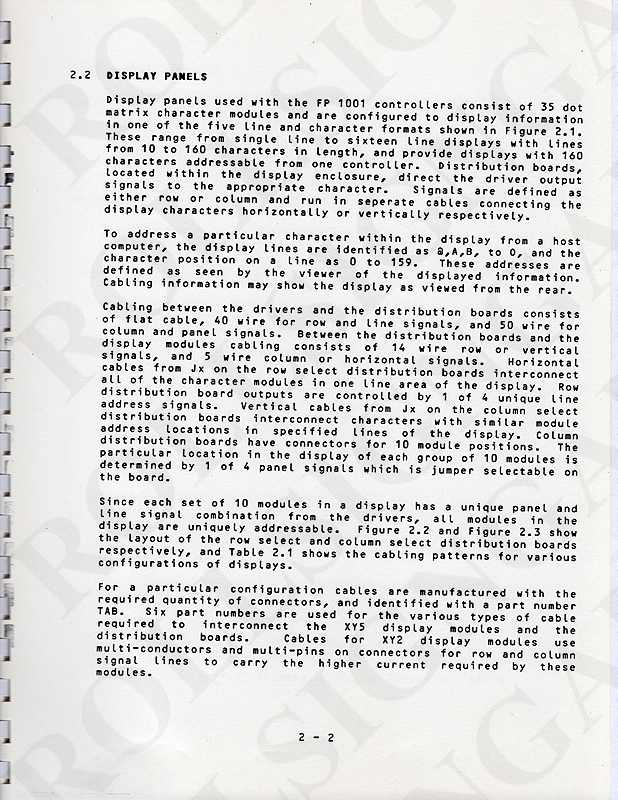

Page 2-2
Display Panels.
Click / tap
to enlarge.
Page 2-2 - Display Panels. (Click / tap the X to close.)

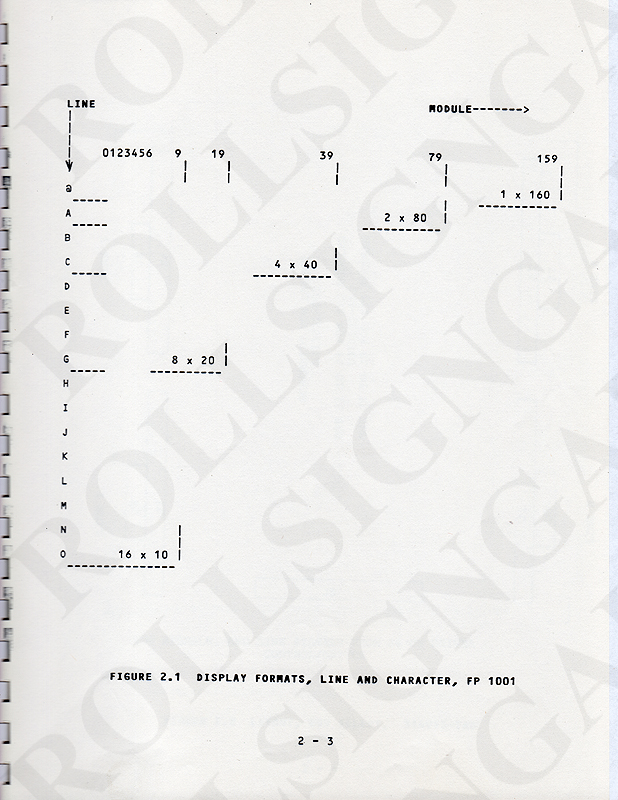

Page 2-3
Figure 2.1,
Display Formats,
Line & Character.
Click / tap
to enlarge.
Page 2-3 - Figure 2.1, Display Formats, Line and Character. (Click / tap the X to close.)

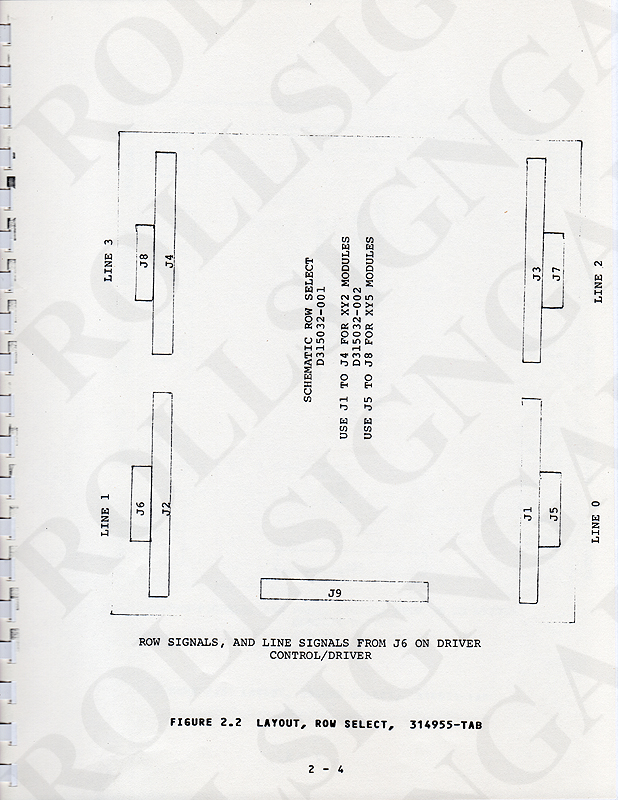

Page 2-4
Figure 2.2,
Layout, Row
Select Driver.
Click / tap
to enlarge.
Page 2-4 - Figure 2.2, Layout, Row Select Driver. (Click / tap the X to close.)

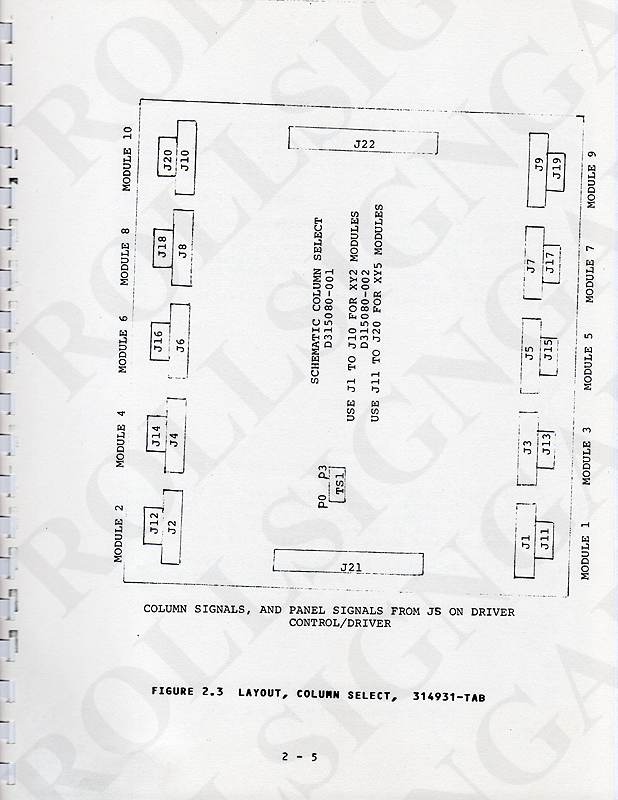

Page 2-5
Figure 2.3,
Layout, Column
Select Driver.
Click / tap
to enlarge.
Page 2-5 - Figure 2.3, Layout, Column Select Driver. (Click / tap the X to close.)

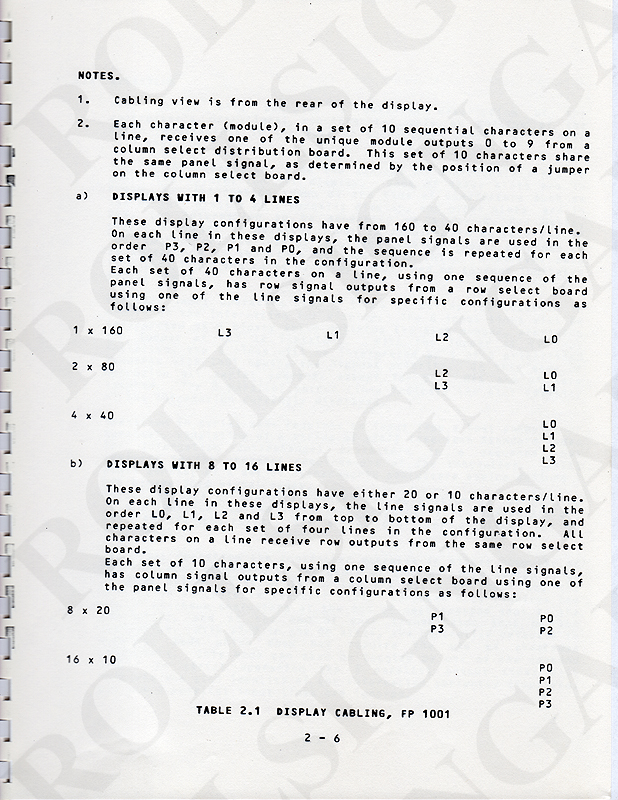

Page 2-6
Table 2.1, Display
Cabling to the
Sign Panels.
Click / tap
to enlarge.
Page 2-6 - Table 2.1, Display Cabling to the Sign Panels. (Click / tap the X to close.)

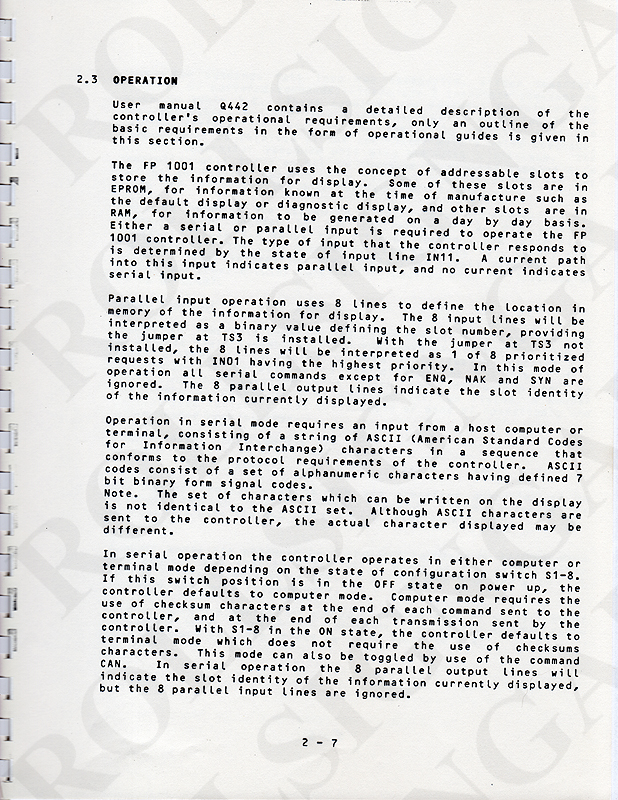

Page 2-7
Operation
Part 1.
Click / tap
to enlarge.
Page 2-7 - Operation, Part 1. (Click / tap the X to close.)

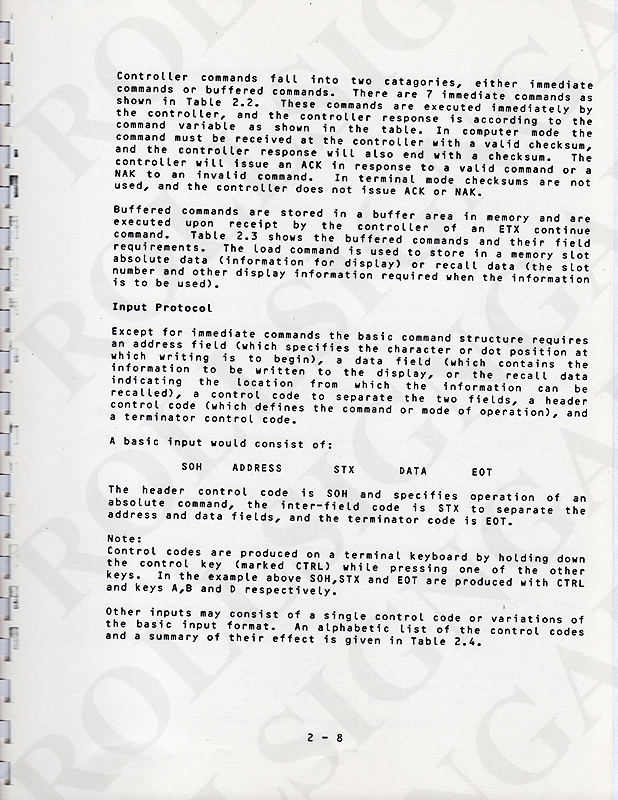

Page 2-8
Operation
Part 2.
Click / tap
to enlarge.
Page 2-8 - Operation, Part 2. (Click / tap the X to close.)

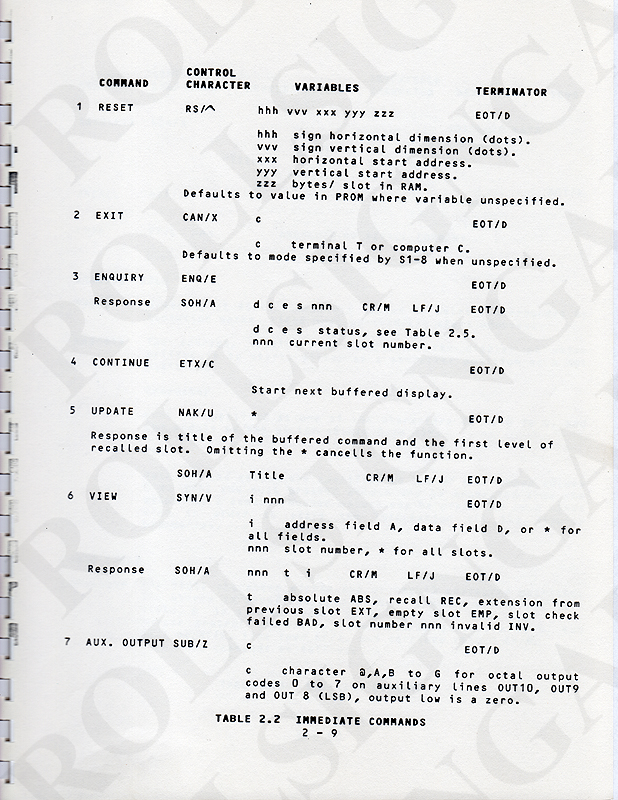

Page 2-9
Table 2.2
Immediate
Commands.
Click / tap
to enlarge.
Page 2-9 - Table 2.2 Immediate Commands. (Click / tap the X to close.)
Page 2-10
Table 2.3a, Buffered
Commands
Part 1.
Click / tap
to enlarge.
Page 2-10 - Table 2.3a, Buffered Commands, Part 1. (Click / tap the X to close.)
Page 2-11
Table 2.3b, Buffered
Commands
Part 2.
Click / tap
to enlarge.
Page 2-11 - Table2.3b, Buffered Commands, Part 2. (Click / tap the X to close.)

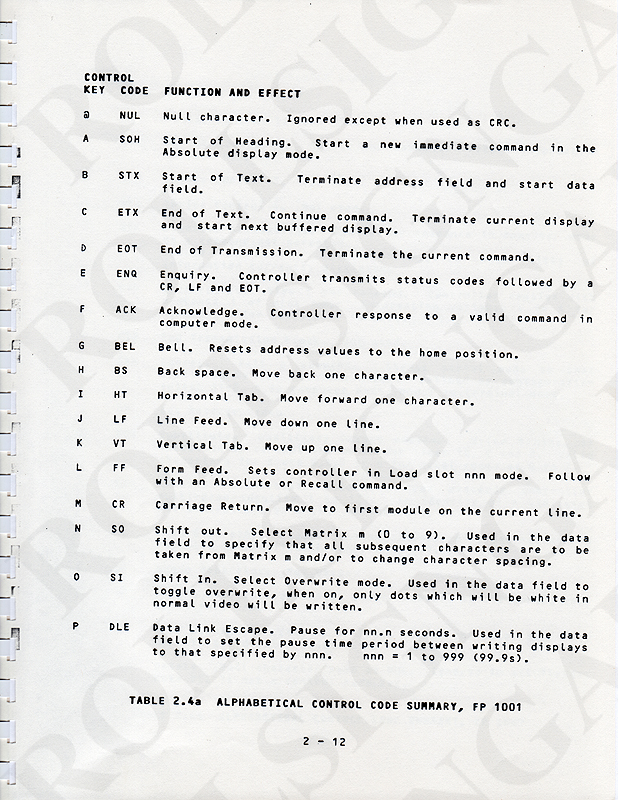

Page 2-12
Table 2.4a
Alphabetical
Control Code
Summary Part 1.
Click / tap to enlarge.
Page 2-12 - Table 2.4a, Alphabetical Control Code Summary, Page 1. (Click / tap the X to close.)

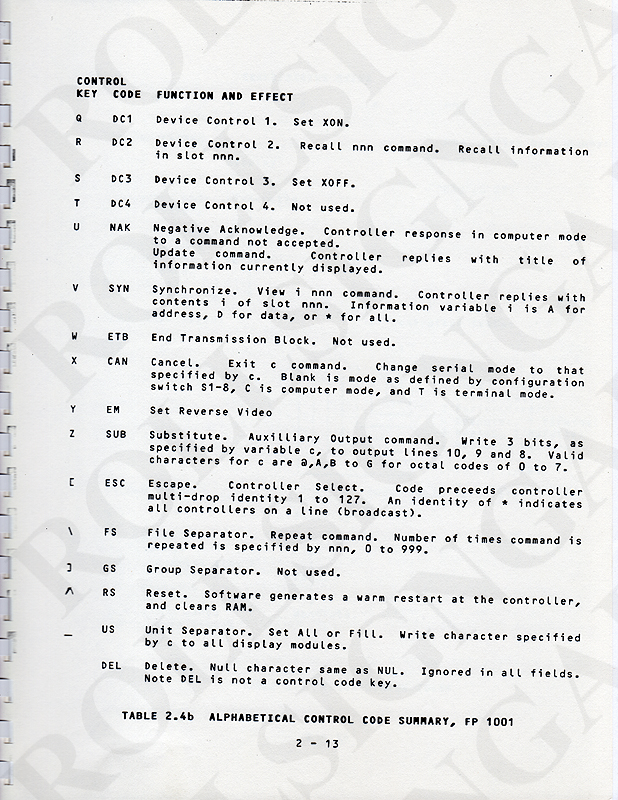

Page 2-13
Table 2.4b
Alphabetical
Control Code
Summary Part 2.
Click / tap to enlarge.
Page 2-13 - Table 2.4b, Alphabetical Control Code Summary, Part 2. (Click / tap the X to close.)
Page 2-14
Table 2.5
Error / Status
Codes.
Click / tap
to enlarge.
Page 2-14 - Table 2.5, Error / Status Codes. (Click / tap the X to close.)
Page 2-15
Controller Select,
Address & Data
Field Format.
Click / tap
to enlarge.
Page 2-15 - Controller Select, Address and Data Field Format. (Click / tap the X to close.)

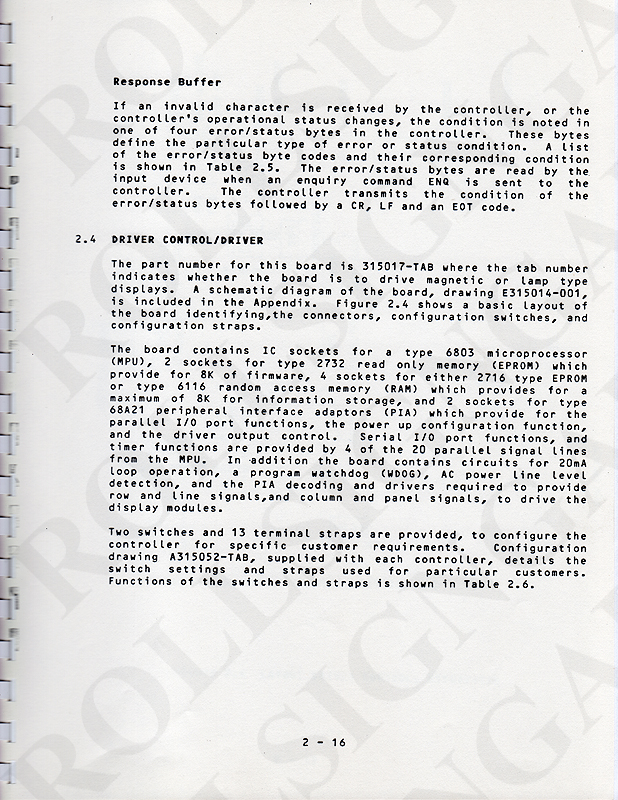

Page 2-16
Response Buffer,
Driver Control /
Driver.
Click / tap
to enlarge.
Page 2-16 - Response Buffer, Driver Control / Driver. (Click / tap the X to close.)
Page 2-17
Figure 2.4
Layout Driver
Control.
Click / tap
to enlarge.
Page 2-17 - Figure 2.4, Layout Driver Control. (Click / tap the X to close.)
Page 2-18
Figure 2.5
Block Diagram
Driver Control.
Click / tap
to enlarge.
Page 2-18 - Figure 2.5, Block Diagram Driver Control. (Click / tap the X to close.)
Page 2-19
Table 2.6
Configuration
Switches & Straps.
Click / tap
to enlarge.
Page 2-19 - Table 2.6, Configuration Switches and Straps. (Click / tap the X to close.)
Page 2-20
Initialization,
Serial and
Parallel I/O Port.
Click / tap
to enlarge.
Page 2-20 - Initialization, Serial I/O Port, Parallel I/O Port. (Click / tap the X to close.)

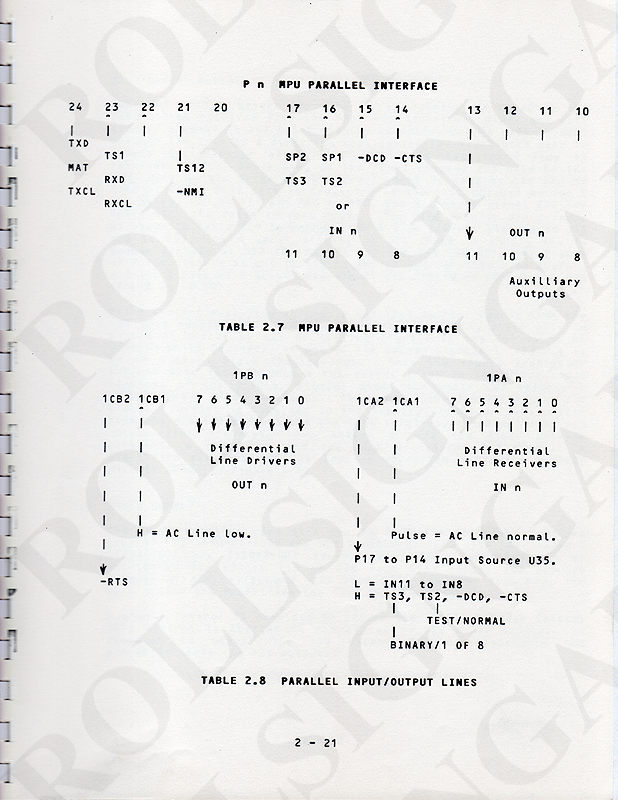

Page 2-21
Table 2.8
Parallel Input /
Output Lines.
Click / tap
to enlarge.
Page 2-21 - Table 2.8, Parallel Input / Output Lines. (Click / tap the X to close.)

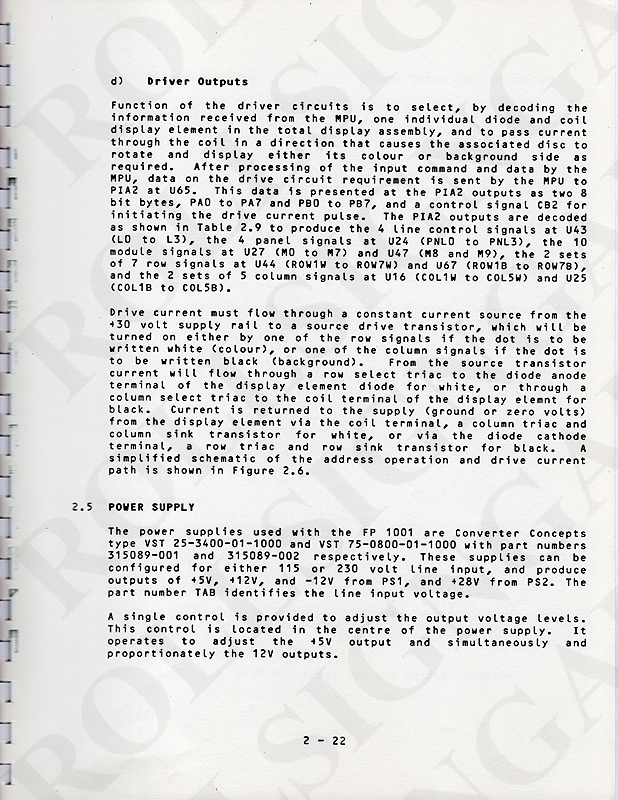

Page 2-22
Driver Outputs,
Power Supply.
Click / tap
to enlarge.
Page 2-22 - Driver Outputs, Power Supply. (Click / tap the X to close.)
Page 2-23
Table 2.9
PIA2 Bit Functions
& Driver Decoding.
Click / tap
to enlarge.
Page 2-23 - Table 2.9, PIA2 Bit Functions and Driver Decoding. (Click / tap the X to close.)

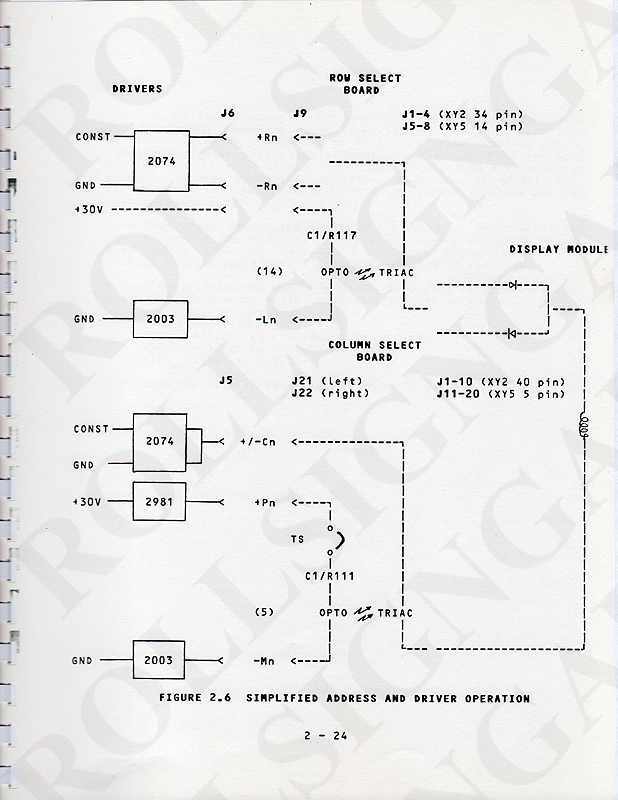

Page 2-24
Figure 2.6
Simplified Address
& Driver Operation.
Click / tap
to enlarge.
Page 2-24 - Figure 2.6, Simplified Address and Driver Operation. (Click / tap the X to close.)

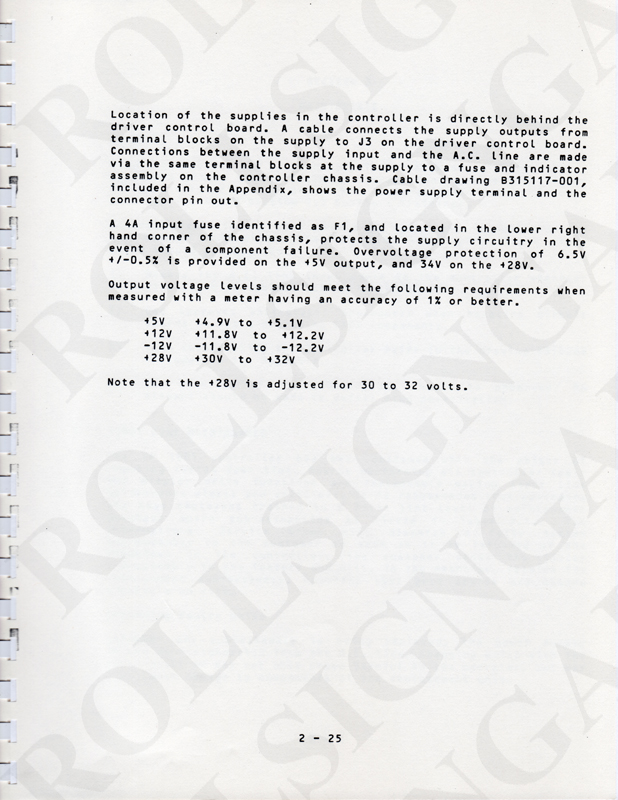

Page 2-25
Notes from
Figure 2.6.
Click / tap
to enlarge.
Page 2-25 - Notes from Figure 2.6. (Click / tap the X to close.)
Page 3-1
Section 3,
Maintenance:
General, First Line
Maintenance
Click / tap to enlarge.
Section 3, Maintenance: General, First Line Maintenance. (Click / tap the X to close.)

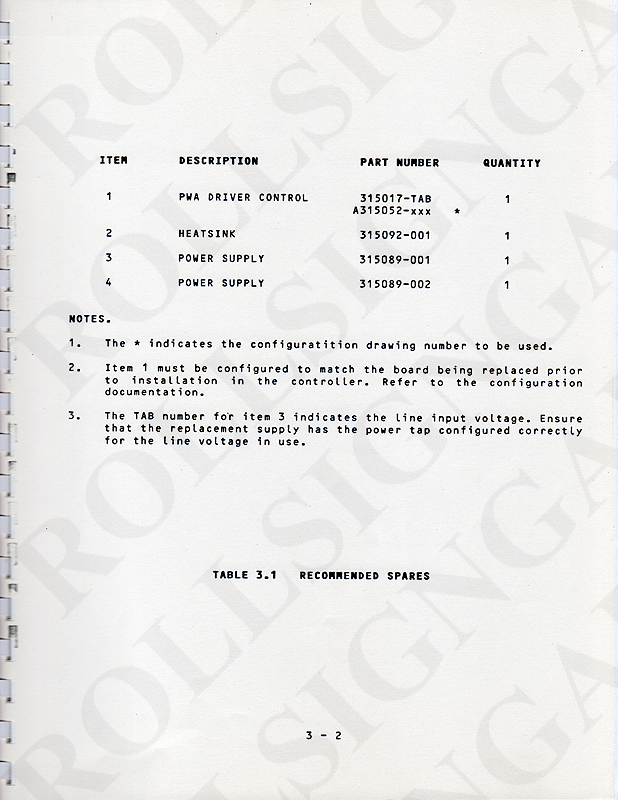

Page 3-2
Table 3.1
Recommended
Spares.
Click / tap
to enlarge.
Page 3-2 - Table 3.1, Recommended Spares. (Click / tap the X to close.)

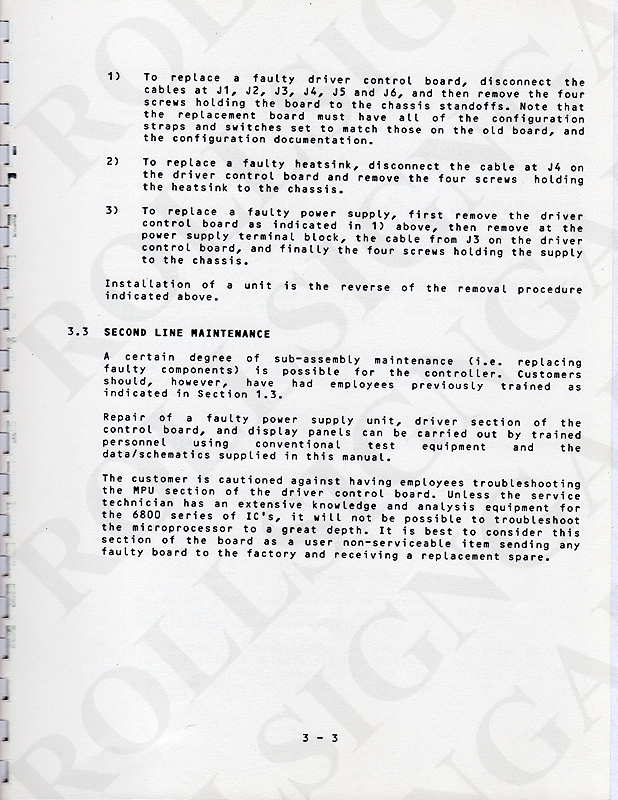

Page 3-3
Second Line
Maintenance.
Click / tap
to enlarge.
Page 3-3 - Second Line Maintenance. (Click / tap the X to close.)

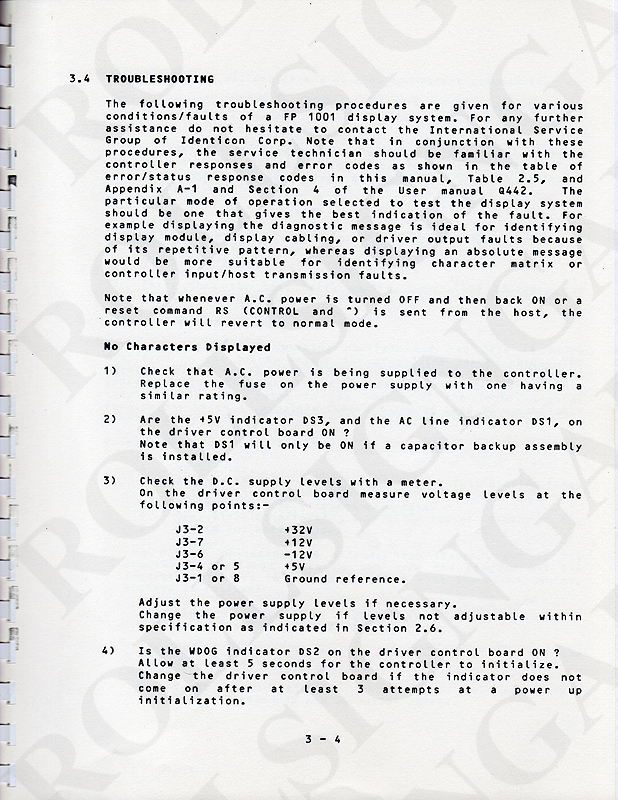

Page 3-4
Troubleshooting
Part 1.
Click / tap
to enlarge.
Page 3-4 - Troubleshooting, Part 1. (Click / tap the X to close.)

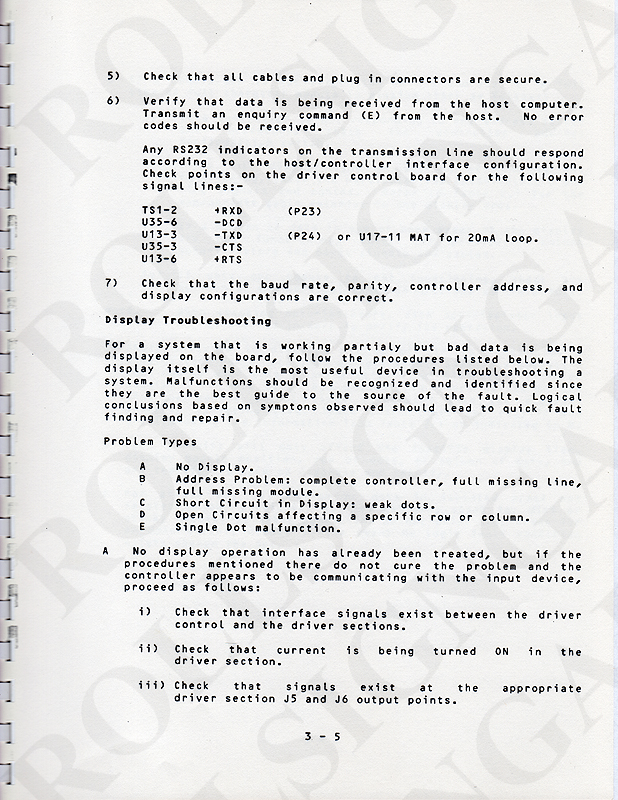

Page 3-5
Troubleshooting
Part 2.
Click / tap
to enlarge.
Page 3-5 - Troubleshooting, Part 2. (Click / tap the X to close.)

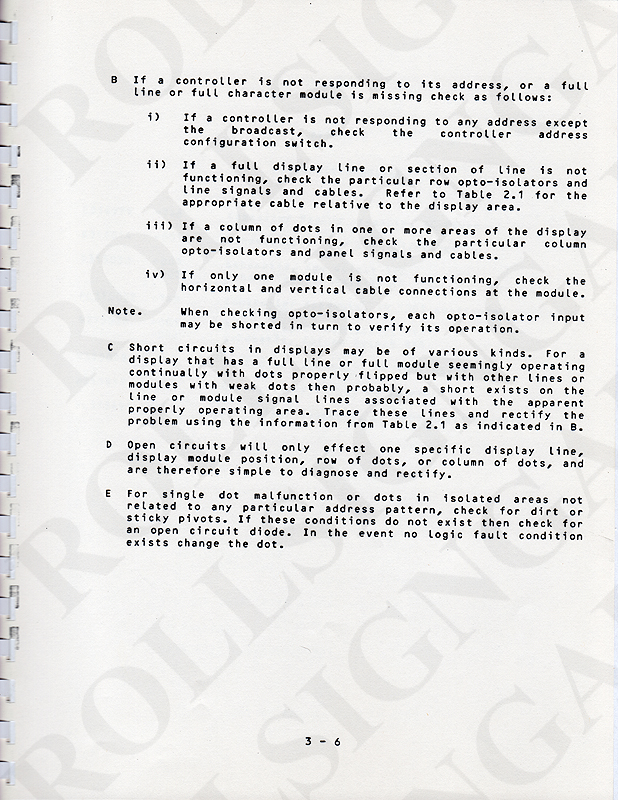

Page 3-6
Troubleshooting
Part 3.
Click / tap
to enlarge.
Page 3-6 - Troubleshooting, Part 3. (Click / tap the X to close.)

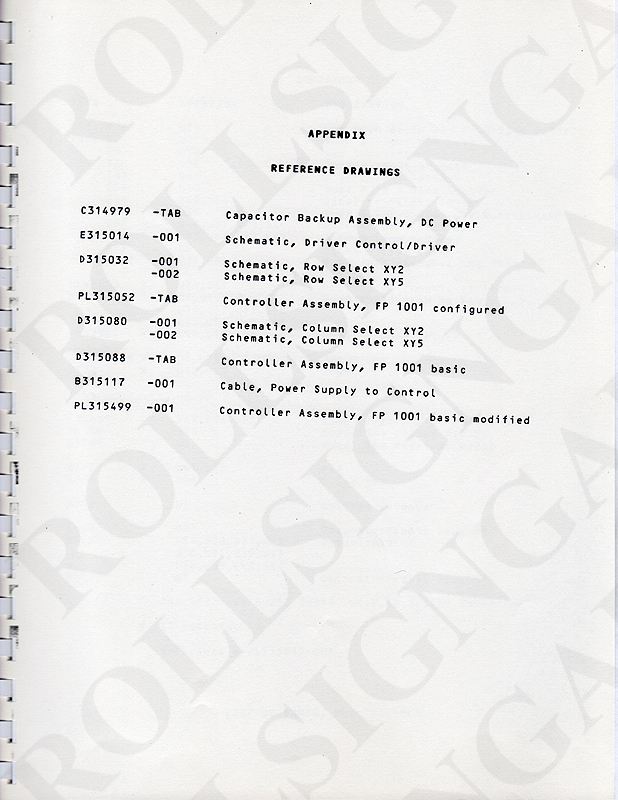

Appendix:
Reference
Drawings List.
Click / tap
to enlarge.
Appendix: Reference Drawings List. (Click / tap the X to close.)

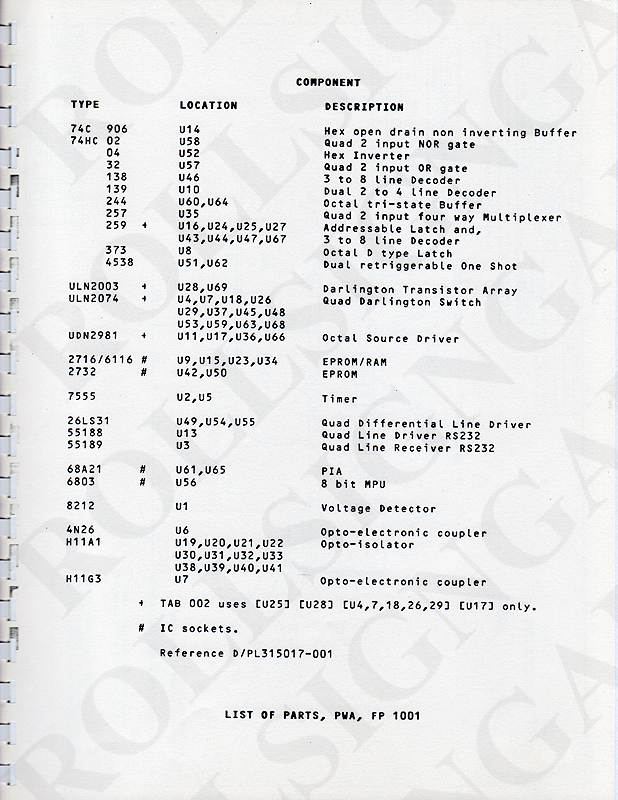

Appendix:
List of Parts - PWA
(Type, Location,
Description).
Click / tap
to enlarge.
Appendix: List of Parts - PWA (Type, Location, Description). (Click / tap the X to close.)

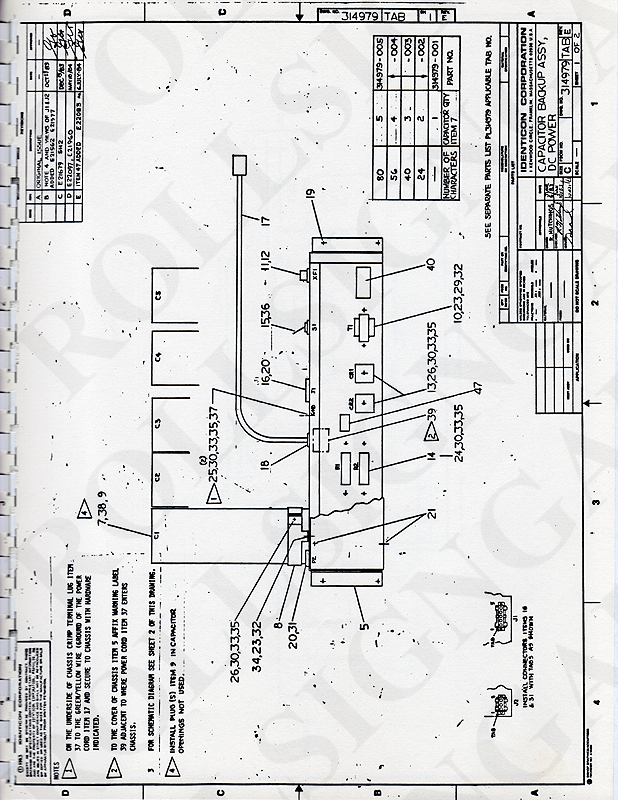

Drawing 1:
Capacitor Backup
Assy, DC Power.
314979-TAB Rev. E
Part 1 of 2.
Click / tap to enlarge.
Drawing 1: Capacitor Backup Assy., DC Power. 314979-TAB Rev. E, Part 1 of 2. (Click / tap the X to close.)

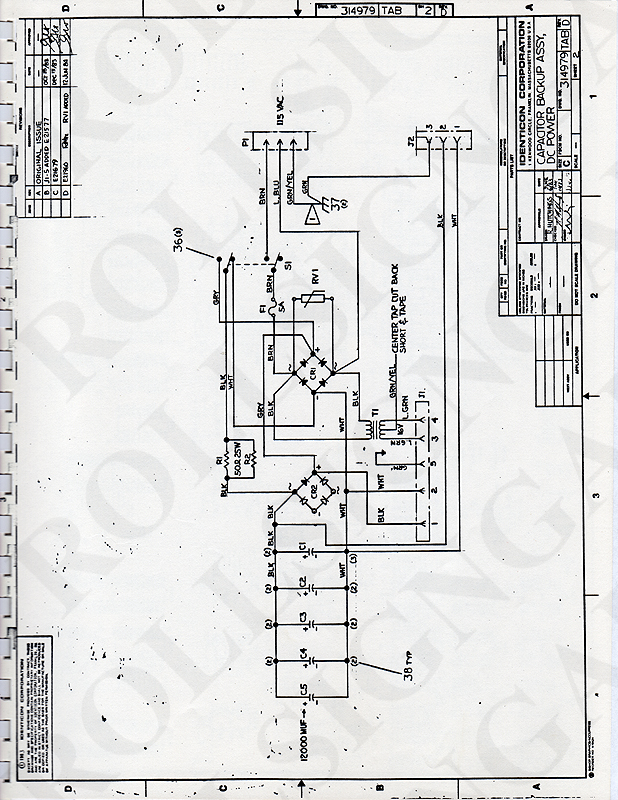

Drawing 2:
Capacitor Backup
Assy, DC Power.
314979-TAB Rev. D
Part 2 of 2.
Click / tap to enlarge.
Drawing 2: Capacitor Backup Assy., DC Power. 314979-TAB Rev. D, Part 2 of 2. (Click / tap the X to close.)

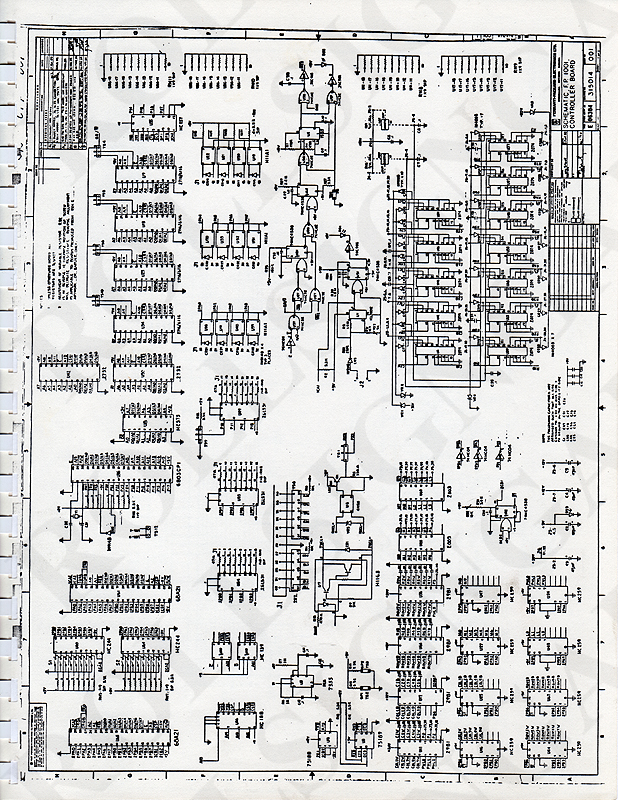

Drawing 3:
Schematic
F.P.1001
Controller Board.
315014-001.
Click / tap to enlarge.
Drawing 3: Schematic F.P.1001 Controller Board. 315014-001. (Click / tap the X to close.)

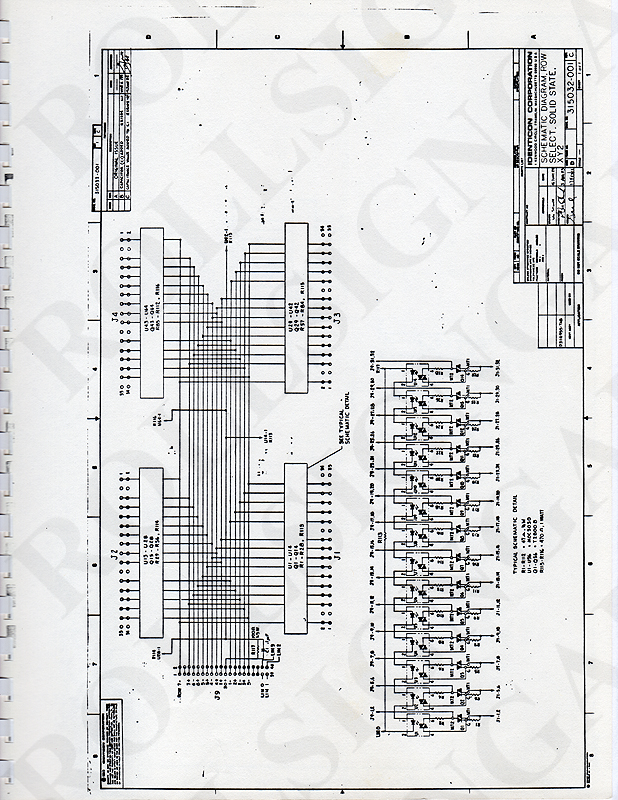

Drawing 4:
Schematic,
Row Select,
Solid State, XY2,
315032-001 Rev. C
Click / tap to enlarge.
Drawing 4: Schematic Row Select, Solid State, XY2. 315032-001 Rev. C. (Click / tap the X to close.)

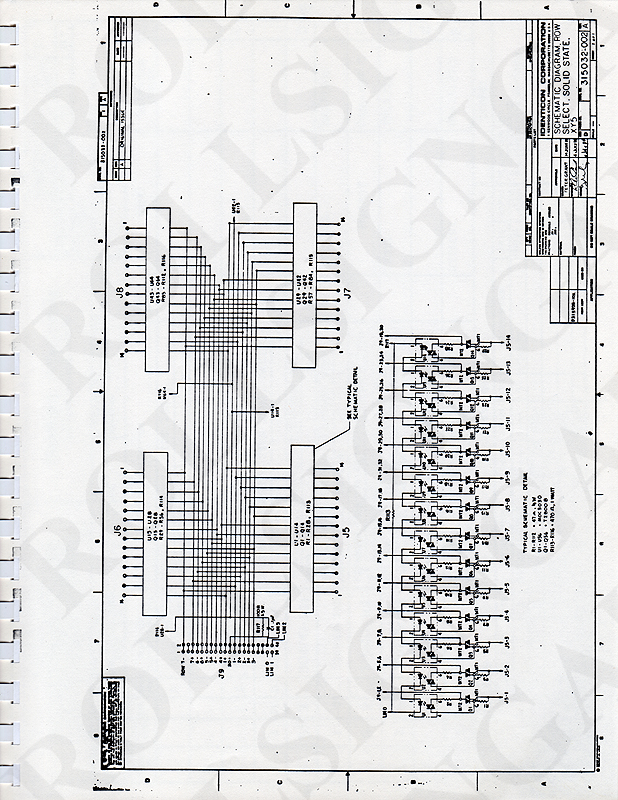

Drawing 5:
Schematic,
Row Select,
Solid State, XY5,
315032-002 Rev. A
Click / tap to enlarge.
Drawing 5: Schematic Row Select, Solid State, XY5. 315032-002 Rev. A. (Click / tap the X to close.)

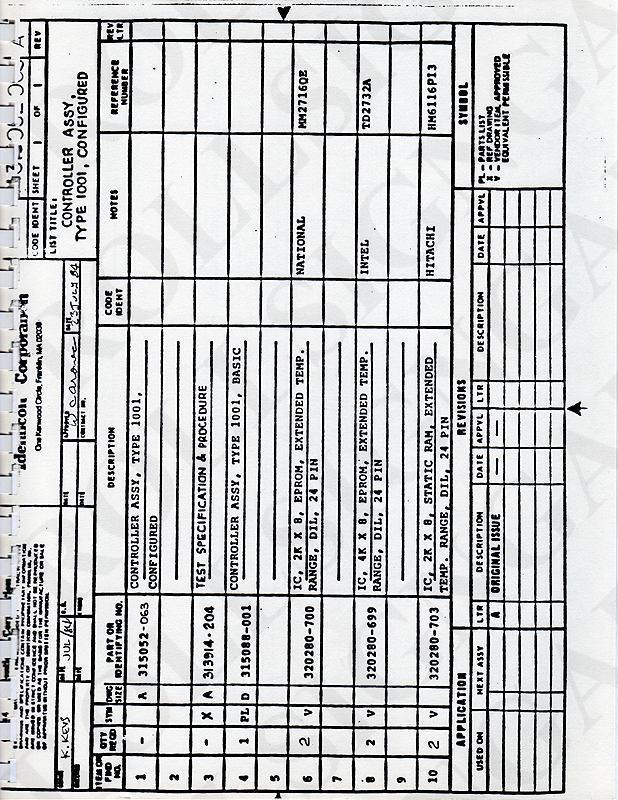

Parts List:
Controller Assy, Type
1001, Configured
315052-001 to 005
Rev. F
Click / tap to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-001 to 005 Rev. F. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-006 to 023
Rev. D
Click / tap to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-006 to 023 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-024 Rev. D
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-024 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-025 Rev. D
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-025 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-026 Rev. D
Click / tap
to enlarge.
Parts List: controller Assy., Type 1001, Configured. 315052-026 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-027 Rev. D
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-027 Rev. D. (Click / tap the X to close.)

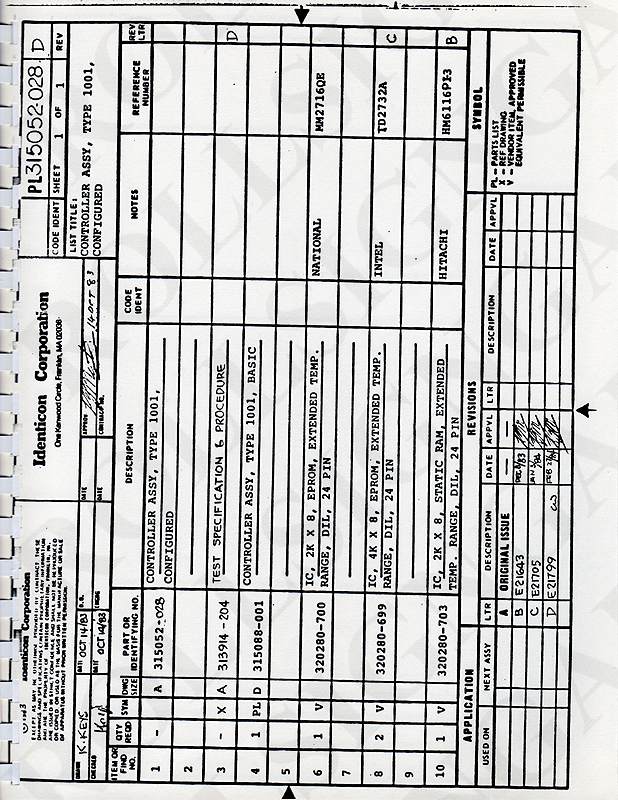

Parts List:
Controller Assy, Type
1001, Configured
315052-028 Rev. D
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-028 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-029 Rev. D
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-029 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-030 Rev. D
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-030 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-031 Rev. D
Click / tap
to enlarge.
Parts List: controller Assy., Type 1001, Configured. 315052-031 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-032 Rev. B
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-032 Rev. B. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-033 Rev. B
Click / tap
to enlarge.
Parts List: Controller Assy., Type 1001, Configured. 315052-033 Rev. B. (Click / tap the X to close.)
Parts List:
Controller Assy, Type
1001, Configured
315052-035 Rev. A
Click / tap
to enlarge..
Parts List: Controller Assy., Type 1001, Configured. 315052-035 Rev. A. (Click / tap the X to close.)

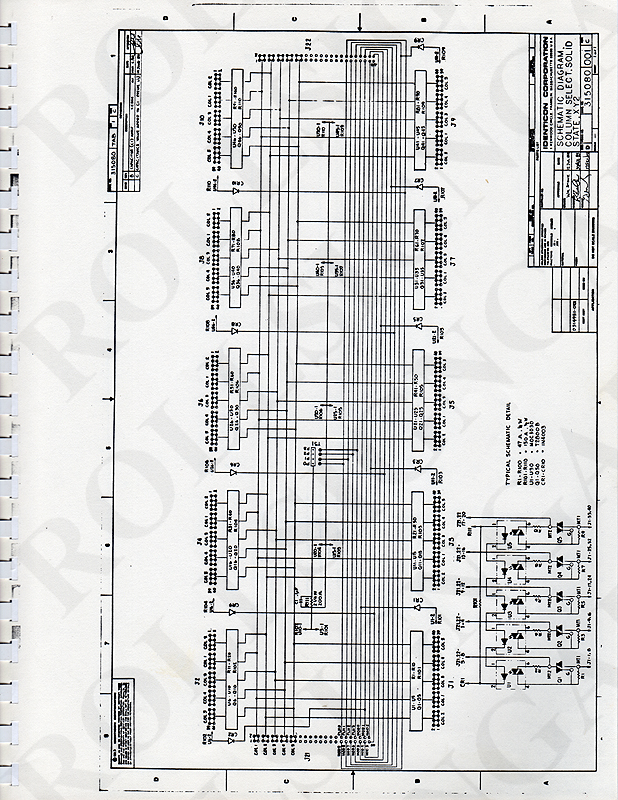

Drawing 6:
Schematic Diagram
Column Select
Solid State XY2.
315080-001 Rev. C
Click / tap to enlarge.
Drawing 6: Schematic Diagram, Column Select Solid State XY2. 315080-001 Rev. C. (Click / tap the X to close.)
Drawing 7:
Schematic Diagram
Column Select
Solid State XY5.
315080-002 Rev. A
Click / tap to enlarge.
Drawing 7: Schematic Diagram, Column Select Solid State XY5. 315080-002 Rev. A. (Click / tap the X to close.)

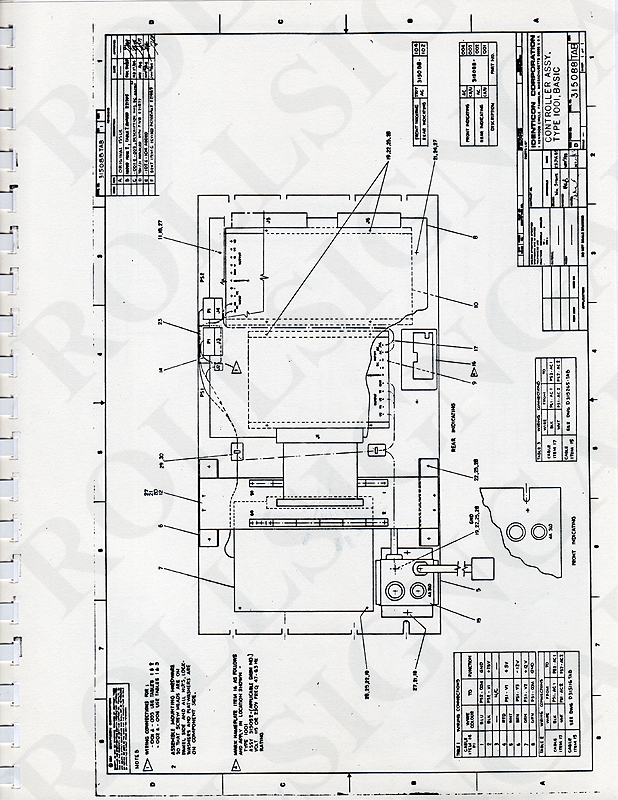

Drawing 8:
Controller Assy,
Type 1001, Basic.
315088-TAB
Click / tap
to enlarge.
Drawing 8: Controller Assy., Type 1001, Basic. 315088-TAB. (Click / tap the X to close.)

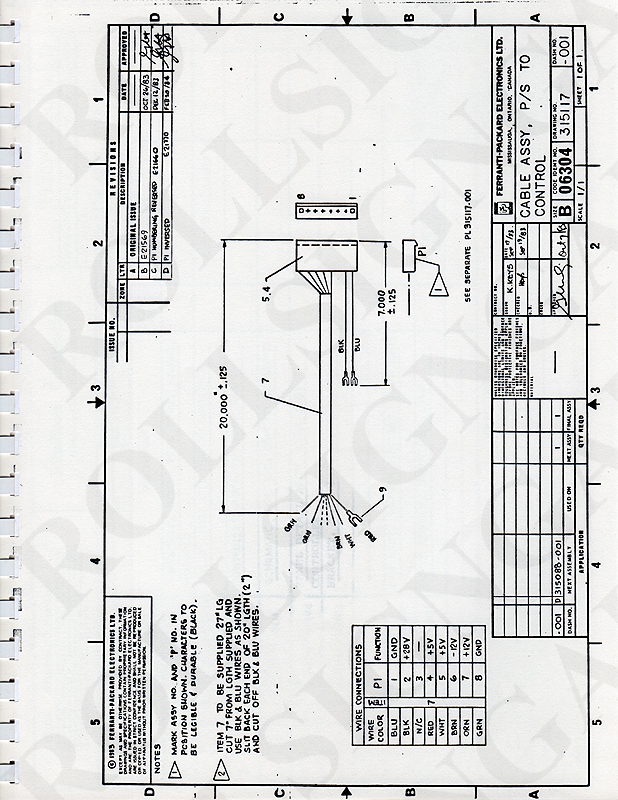

Drawing 9:
Cable Assy,
P / S  to Control.
315117-001
Click / tap
to enlarge.
Drawing 9: Cable Assy., P / S to Control. 315117-001. (Click / tap the X to close.)
Parts List:
Controller Assy,
Type 1001, Basic
Modified, 1 of 3.
315499-001 Rev. D
Click / tap to enlarge.
Parts List: Controller Assy., Type 1001, Basic Modified, 1 of 3. 315499-001 Rev. D. (Click / tap the X to close.)
Parts List:
Controller Assy,
Type 1001, Basic
Modified, 2 of 3.
315499-001 Rev. B
Click / tap to enlarge.
Parts List: Controller Assy., Type 1001, Basic Modified, 2 of 3. 315499-001 Rev. B. (Click / tap the X to close.)
Parts List:
Controller Assy,
Type 1001, Basic
Modified, 3 of 3.
315499-001 Rev. A
Click / tap to enlarge.
Parts List: Controller Assy., Type 1001, Basic Modified, 3 of 3. 315499-001 Rev. A. (Click / tap the X to close.)
Outside
Back Cover.
Click / tap
to enlarge.
Identicon Corp. / FP1001 Display Controller - Outside, Back Cover. (Click / tap the X to close.)
