Identicon Corp. Manual Rev. C (Controllers for Ferranti-Packard Displays)
The FP1001 is a microcomputer based Controller developed by Identicon Corp. to display messages on Ferranti-Packard Display
Boards built with single coil XY-2 (and XY-5) display modules. This manual is provided to outline hardware operation, installation and
maintenance information on the FP1001 Display Controller. It contains essential data for OEM purchases as well as precise information
suitable for the maintenance personnel who have little previous training and who will be maintaining the controller/display system.
(Including info on Pocatec & Axion signs)
Identicon Corp. (Ferranti-Packard displays controller) Manual Rev. C - November 4, 1985 Updated - 75 Page Images
Outside
Front Cover.
Click / tap
to enlarge.
Identicon Corp. / FP1001 Display Controller - Outside, Front Cover Page. (Click / tap the X to close.)
Inside Front
Cover Page.
Click / tap
to enlarge.
Identicon Corp. / FP1001 Display Controller - Inside, Front Cover Page. (Click / tap the X to close.)

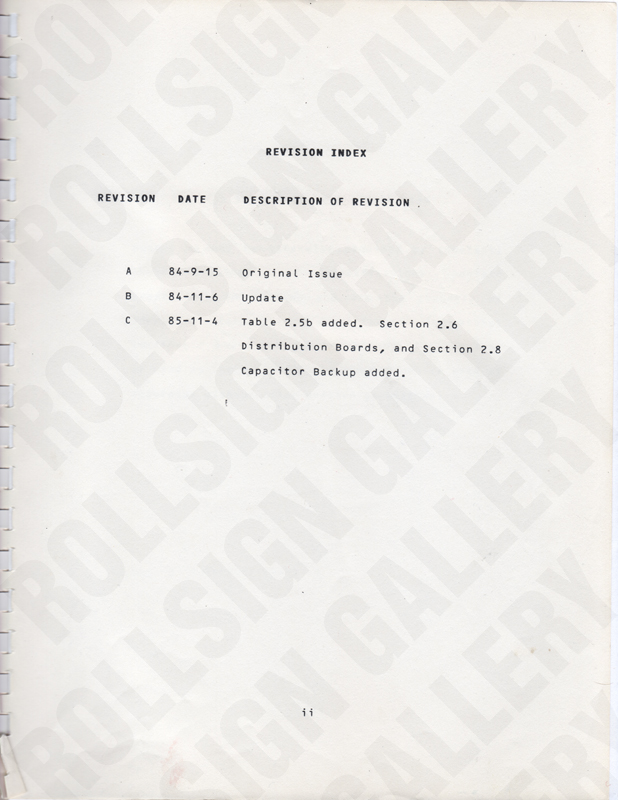

Page ii
Revision Index.
Click / tap
to enlarge.
Page ii - Revision Index. (Click / tap the X to close.)

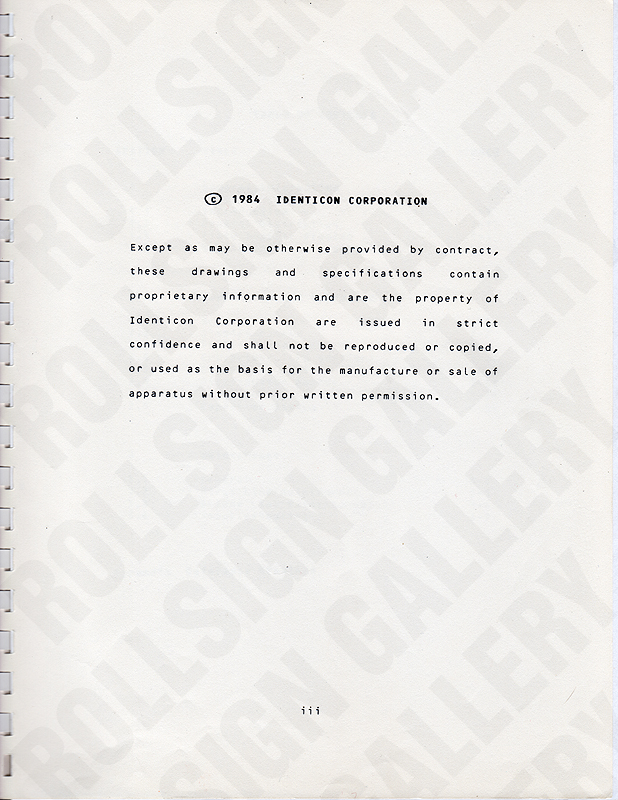

Page iii
Copyright Notice.
Click / tap
to enlarge.
Page iii - Manual Copyright Notice. (Click / tap the X to close.)

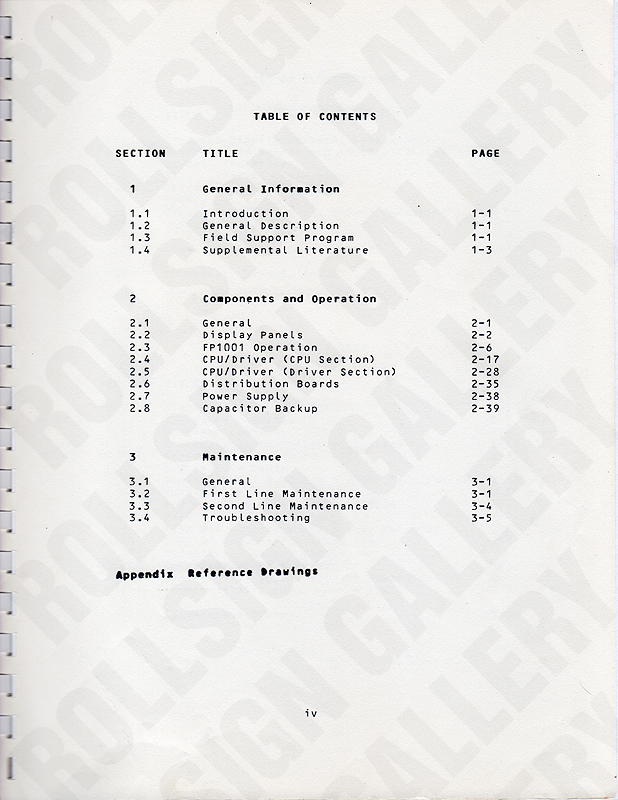

Page iv
Table of
Contents.
Click / tap
to enlarge.
Page iv - Table of Contents. (Click / tap the X to close.)

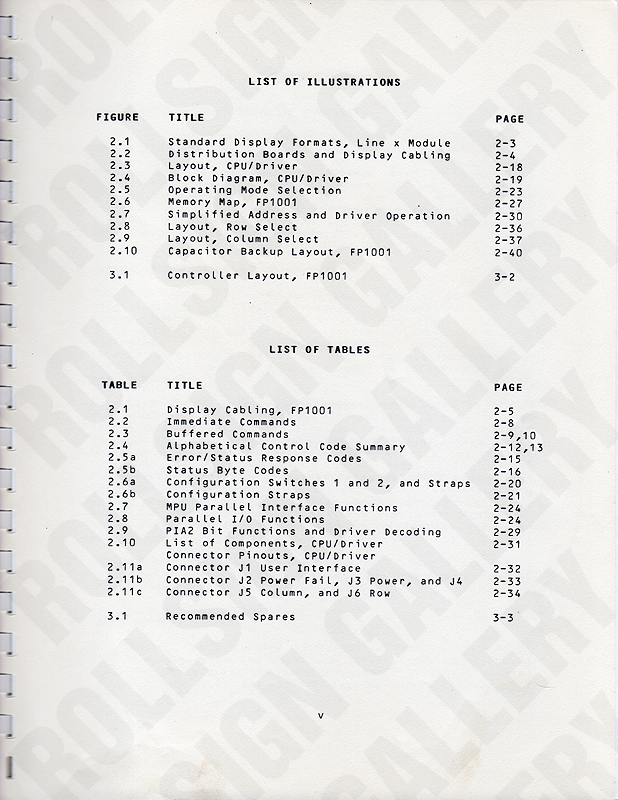

Page v
List of
Illustrations
and Tables.
Click / tap
to enlarge.
Page v - List of Illustrations and Tables. (Click / tap the X to close.)
Page 1-1
Introduction, General
Information, Field
Support Program.
Click / tap
to enlarge.
Page 1-1 - Introduction, General Information, Field Support Program. (Click / tap the X to close.)

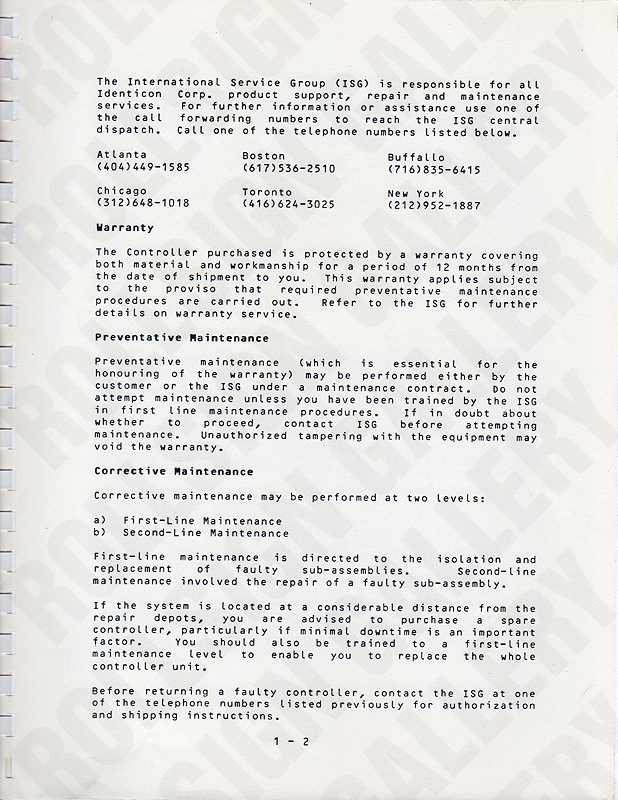

Page 1-2
Warranty,
Preventative and
Corrective
Maintenance.
Click / tap to enlarge.
Page 1-2 - Warranty, Preventative Maintenace, Corrective Maintenance. (Click / tap the X to close.)

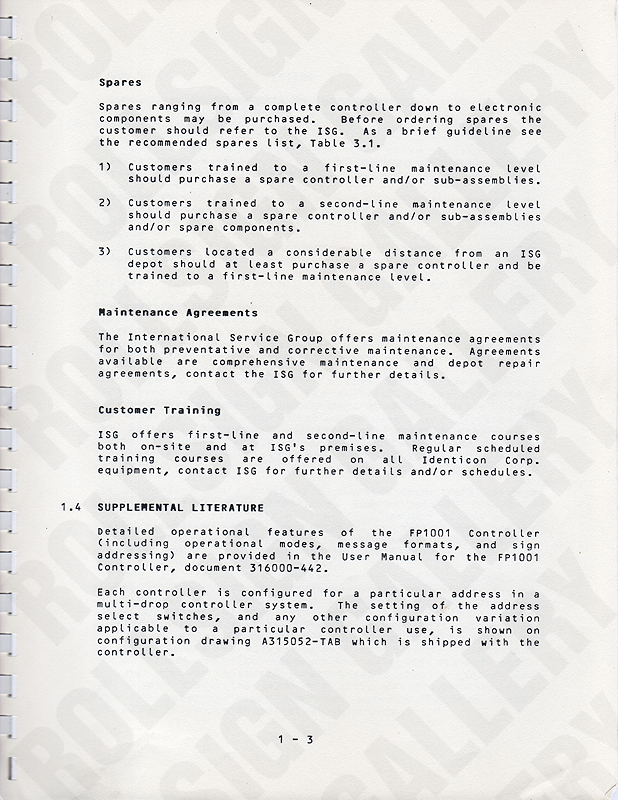

Page 1-3
Spares,
Supplemental
Literature.
Click / tap
to enlarge.
Page 1-3 - Spares, Supplemental Literature. (Click / tap the X to close.)

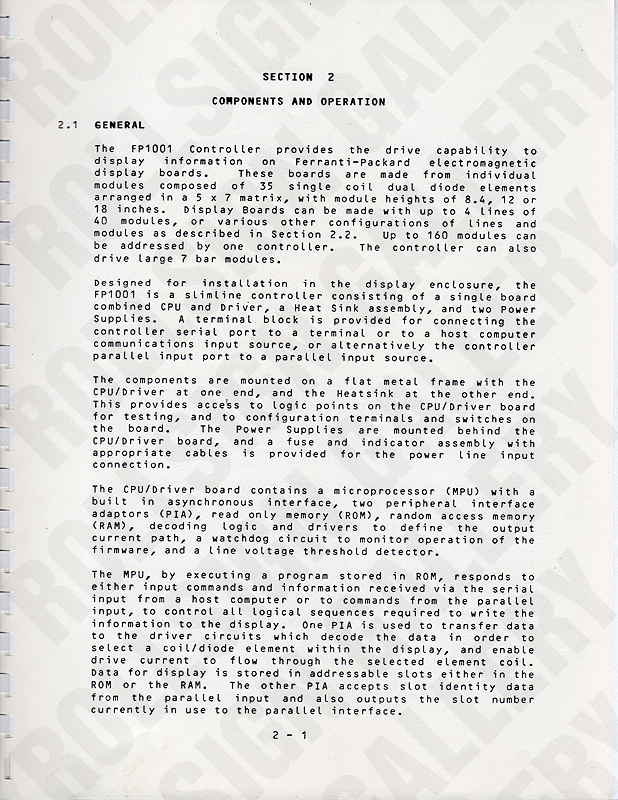

Page 2-1
Section 2:
Components and
Operation: General.
Click / tap
to enlarge.
Section 2: Components and Operation: General. (Click / tap the X to close.)

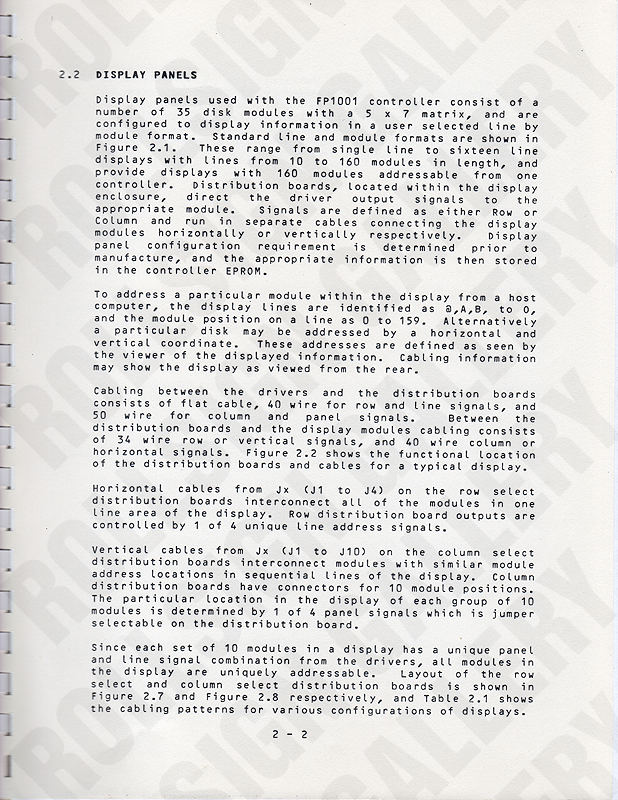

Page 2-2
Display Panels.
Click / tap
to enlarge.
Page 2-2 - Display Panels. (Click / tap the X to close.)

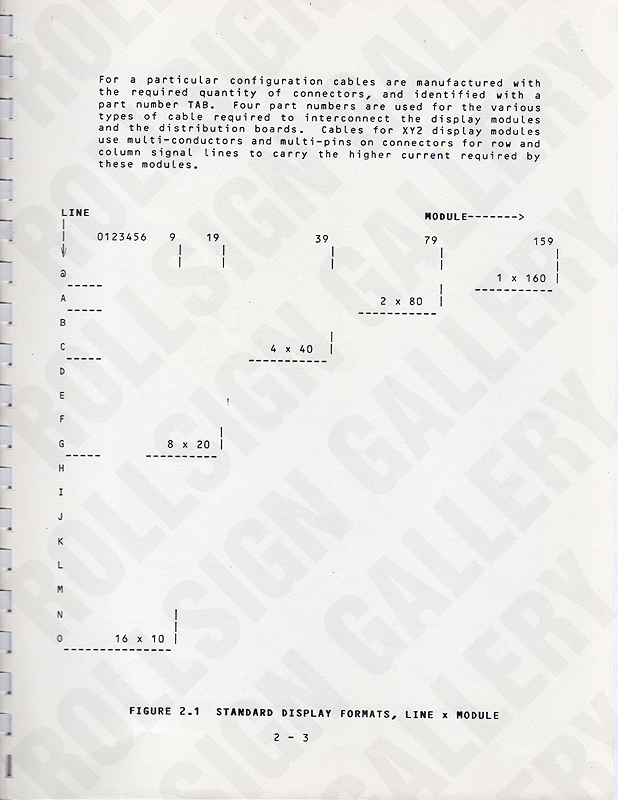

Page 2-3
Figure 2.1,
Standard Display
Formats,
Line x Module.
Click / tap to enlarge.
Page 2-3 - Figure 2.1, Standard Display Formats, Line x Module. (Click / tap the X to close.)

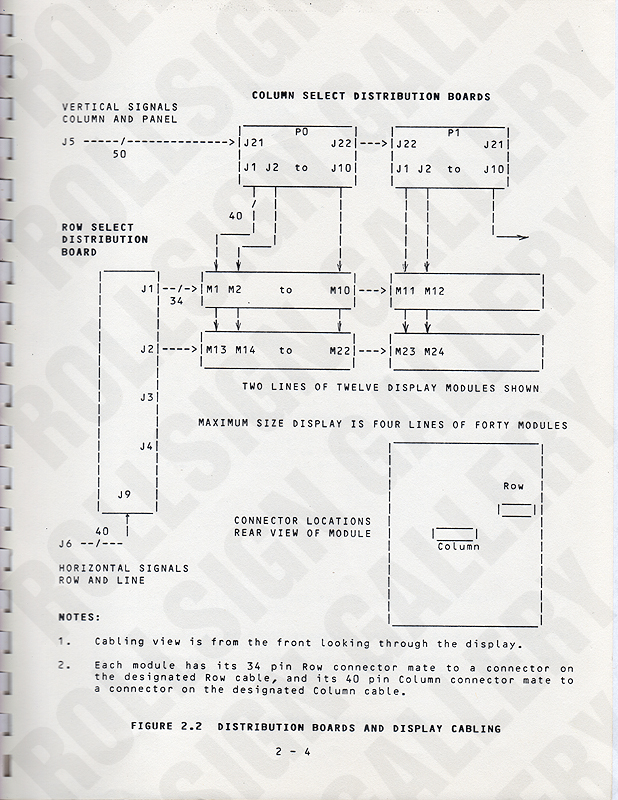

Page 2-4
Figure 2.2,
Distribution Boards
& Display Cabling.
Click / tap
to enlarge.
Page 2-4 - Figure 2.2, Distribution Boards and Display Cabling. (Click / tap the X to close.)

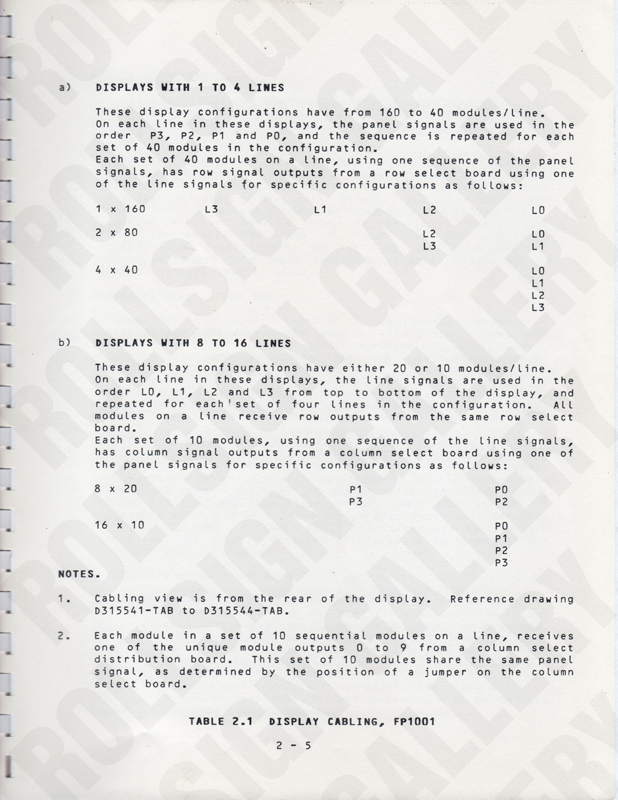

Page 2-5
Table 2.1,
Display Cabling,
FP1001.
Click / tap
to enlarge.
Page 2-5 - Table 2.1, Display Cabling, FP1001. (Click / tap the X to close.)

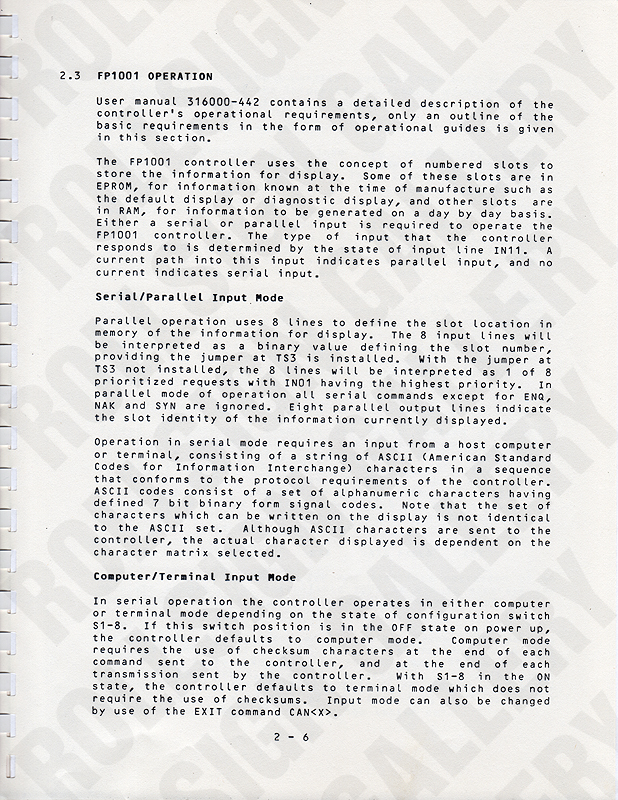

Page 2-6
Operation Part 1:
Serial / Parallel &
Computer / Terminal
Input Modes.
Click / tap to enlarge.
Page 2-6 - Operation Part 1: Serial / Parallel Input Mode, Computer / Terminal Input Mode.<br>(Click / tap the X to close.)

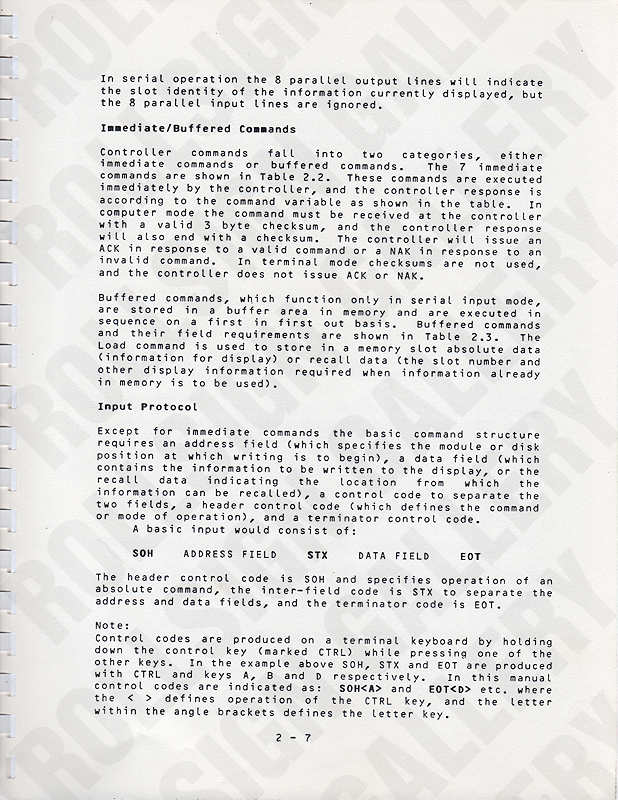

Page 2-7
Operation Part 2:
Immediate / Buffered
Commands,
Input Protocol.
Click / tap to enlarge.
Page 2-7 - Operation, Part 2: Immediate / Buffered Commands, Input Protocol. (Click / tap the X to close.)

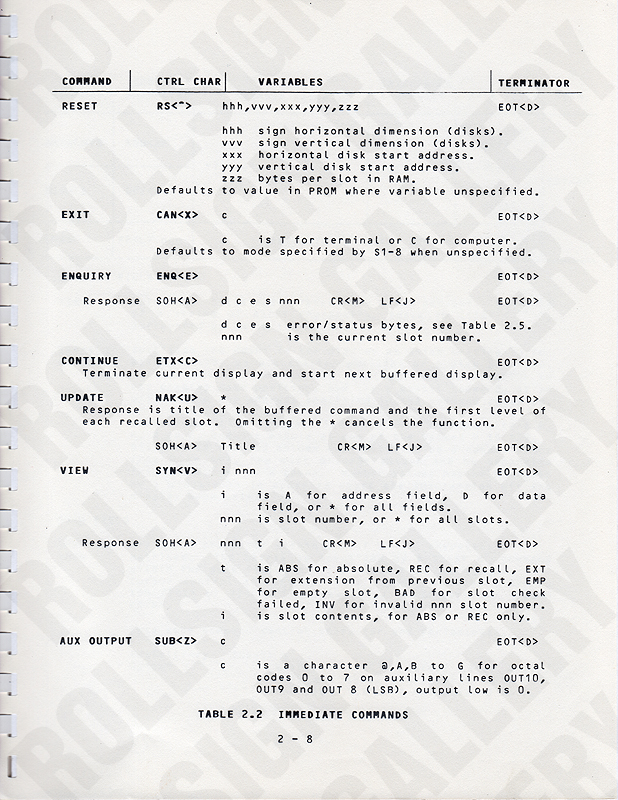

Page 2-8
Table 2.2,
Immediate
Commands.
Click / tap
to enlarge.
Page 2-8 - Table 2.2, Immediate Commands. (Click / tap the X to close.)

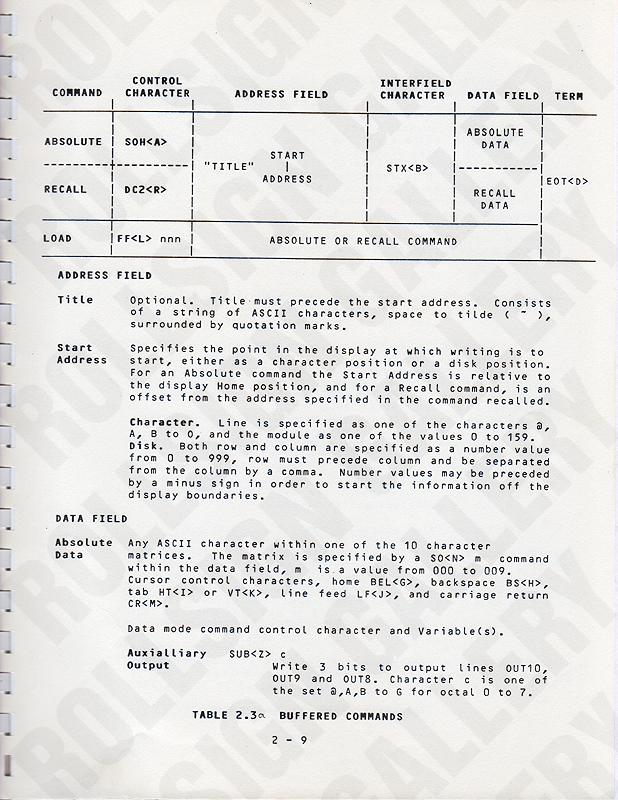

Page 2-9
Table 2.3a, Buffered
Commands
Part 1.
Click / tap
to enlarge.
Page 2-9 - Table 2.3a, Buffered Commands, Part 1. (Click / tap the X to close.)

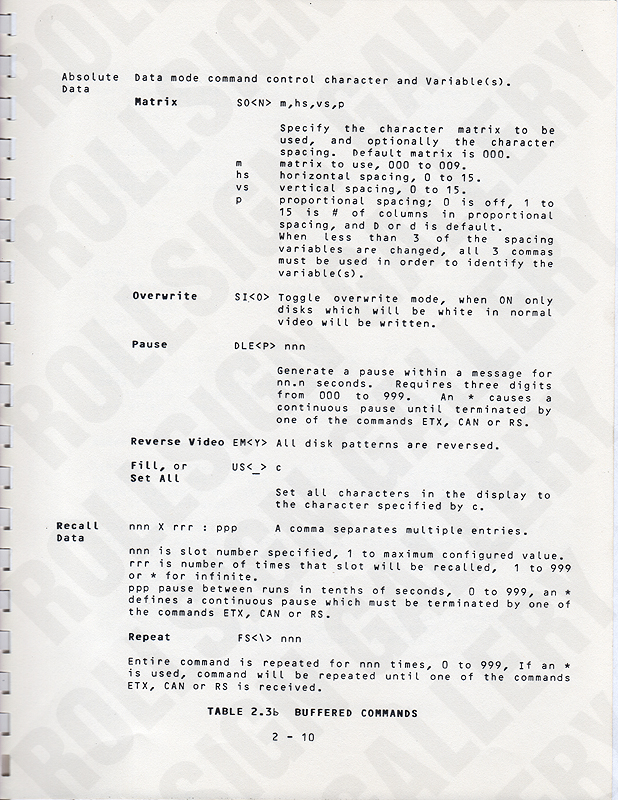

Page 2-10
Table 2.3b, Buffered
Commands
Part 2.
Click / tap
to enlarge.
Page 2-10 - Table 2.3b, Buffered Commands, Part 2. (Click / tap the X to close.)
Page 2-11
Controller Select,
Address Field
Format.
Click / tap
to enlarge.
Page 2-11 - Controller Select, Address Field Format. (Click / tap the X to close.)

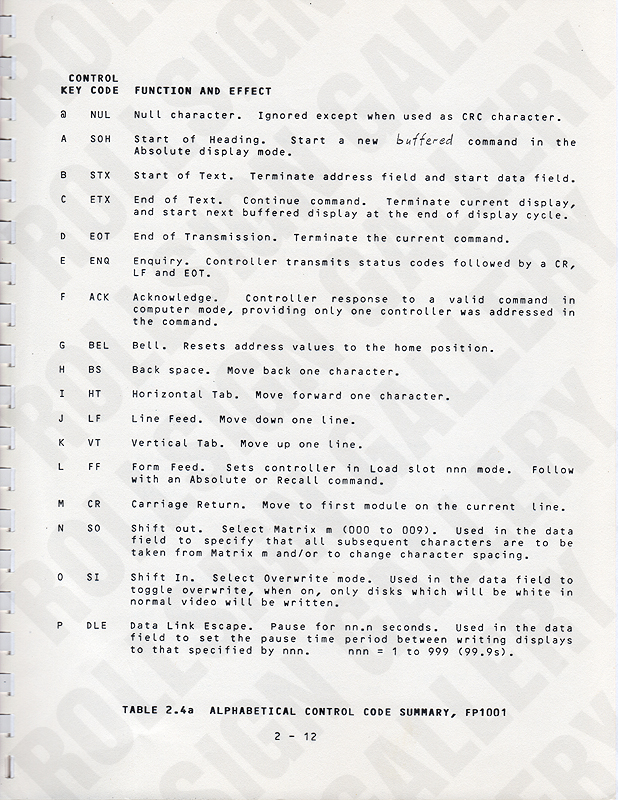

Page 2-12
Table 2.4a
Alphabetical
Control Code
Summary Part 1.
Click / tap to enlarge.
Page 2-12 - Table 2.4a, Alphabetical Control Code Summary, Page 1. (Click / tap the X to close.)

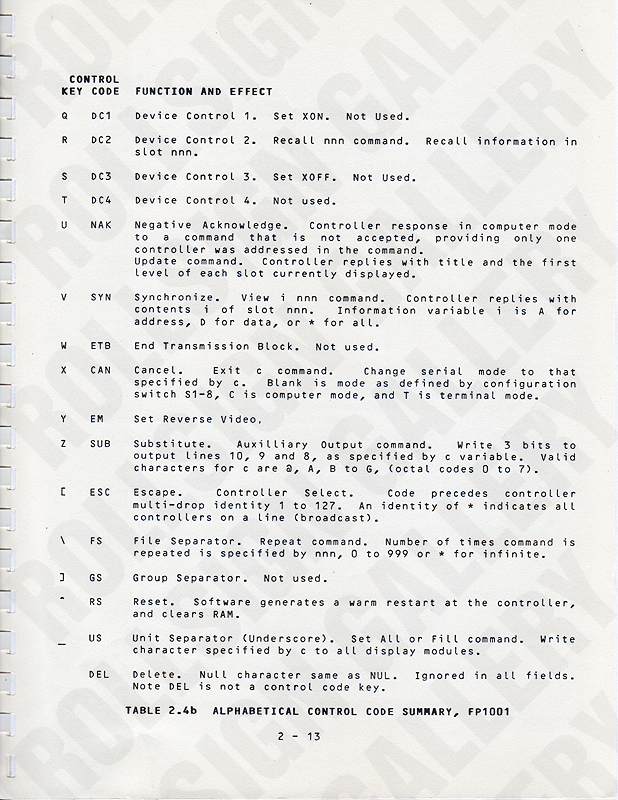

Page 2-13
Table 2.4b
Alphabetical
Control Code
Summary Part 2.
Click / tap to enlarge.
Page 2-13 - Table 2.4b, Alphabetical Control Code Summary, Part 2. (Click / tap the X to close.)
Page 2-14
Data Field
Format,
Response Buffer.
Click / tap
to enlarge.
Page 2-14 - Data Field Format, Response Buffer. (Click / tap the X to close.)

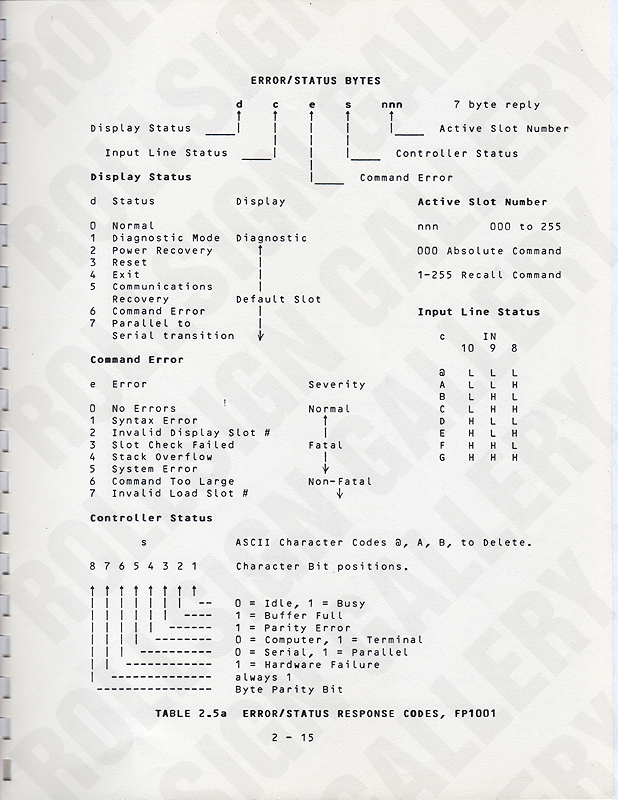

Page 2-15
Table 2.5a,
Error / Status
Response Codes.
Click / tap
to enlarge.
Page 2-15 - Table 2.5a, Error / Status Response Codes. (Click / tap the X to close.)

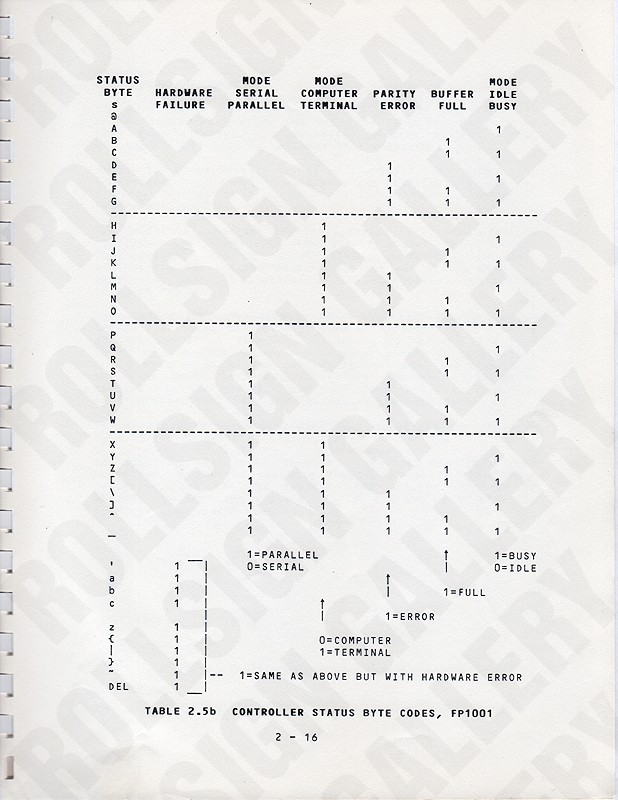

Page 2-16
Table 2.5b,
Controller Status
Byte Codes.
Click / tap
to enlarge.
Page 2-16 - Table 2.5b, Controller Status Byte Codes. (Click / tap the X to close.)
Page 2-17
CPU / Driver
(CPU Section).
Click / tap
to enlarge.
Page 2-17 - CPU / Driver (CPU Section). (Click / tap the X to close.)

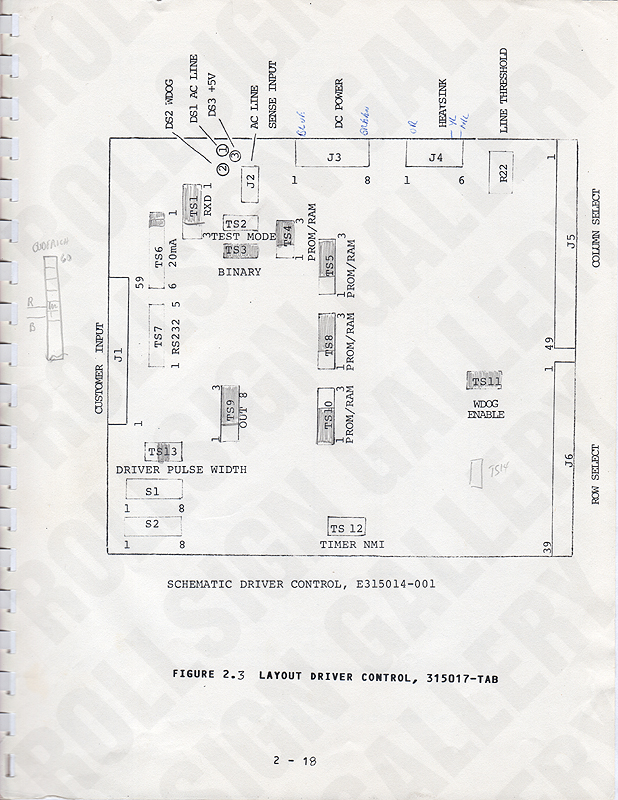

Page 2-18
Figure 2.3
Layout Driver
Control,
315017-TAB
Click / tap to enlarge.
Page 2-18 - Figure 2.3, Layout Driver Control, 315017-TAB. (Click / tap the X to close.)

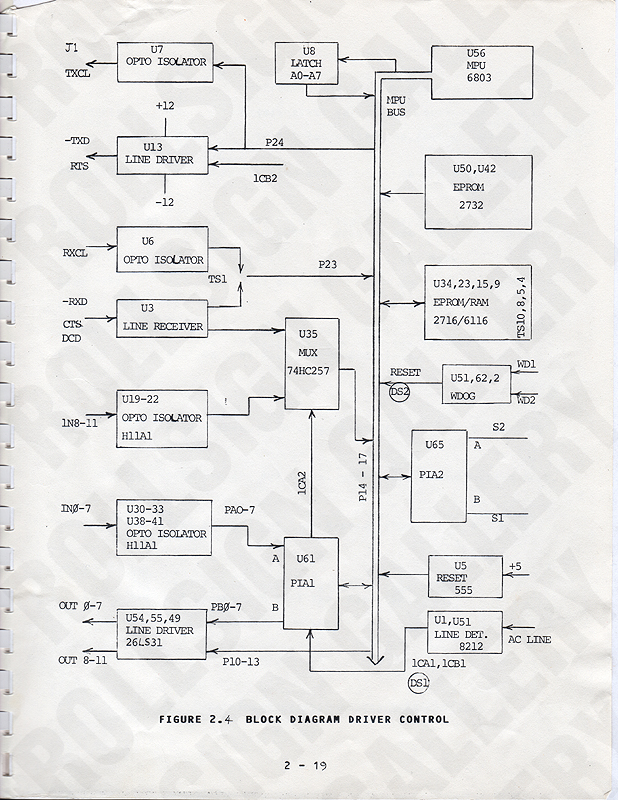

Page 2-19
Figure 2.4
Block Diagram
Driver Control.
Click / tap
to enlarge.
Page 2-19 - Figure 2.4, Block Diagram Driver Control. (Click / tap the X to close.)

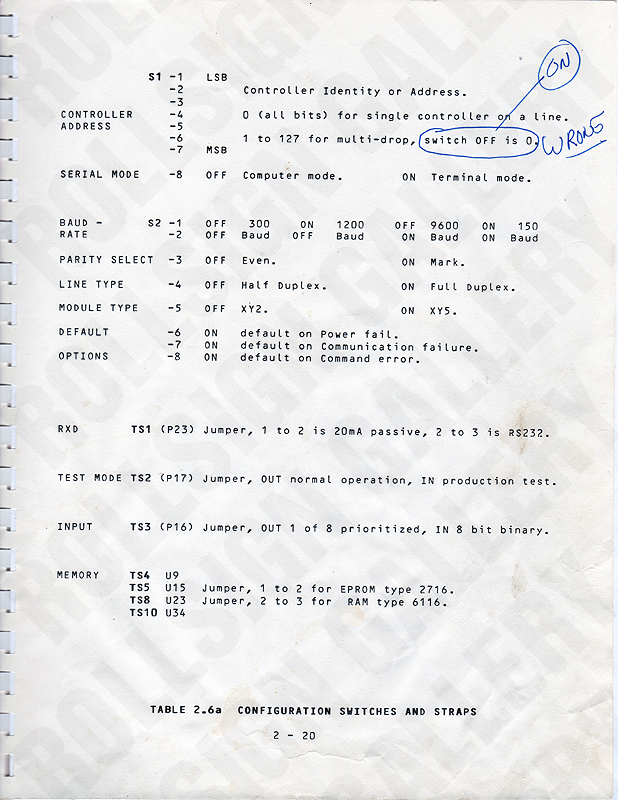

Page 2-20
Table 2.6a
Configuration
Switches & Straps.
Click / tap
to enlarge.
Page 2-20 - Table 2.6a, Configuration Switches and Straps. (Click / tap the X to close.)

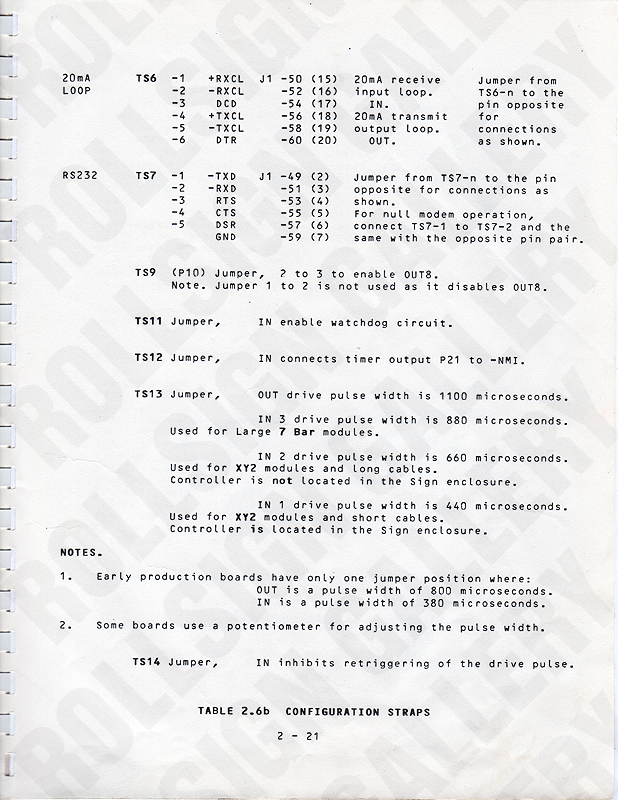

Page 2-21
Table 2.6b
Configuration
Straps.
Click / tap
to enlarge.
Page 2-21 - Table 2.6b, Configuration Straps. (Click / tap the X to close.)

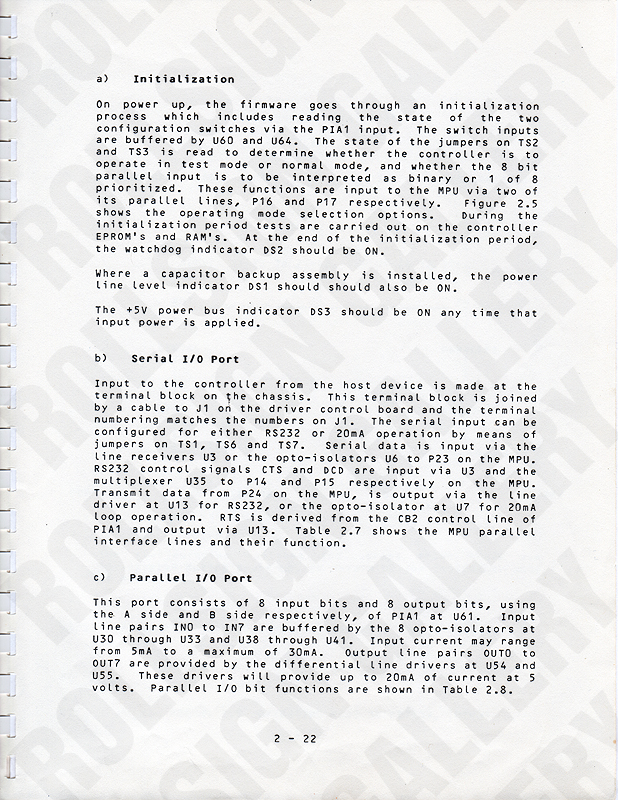

Page 2-22
Initialization,
Serial and
Parallel I/O Port.
Click / tap
to enlarge.
Page 2-22 - Initialization, Serial I/O Port, Parallel I/O Port. (Click / tap the X to close.)

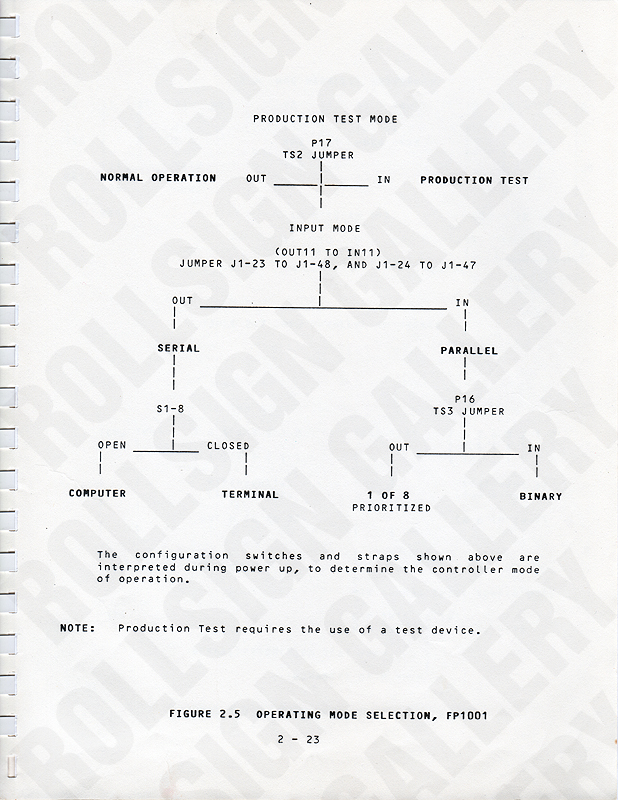

Page 2-23
Figure 2.5
Operating Mode
Selection, FP1001.
Click / tap
to enlarge.
Page 2-23 - Figure 2.5, Operating Mode Selection, FP1001. (Click / tap the X to close.)

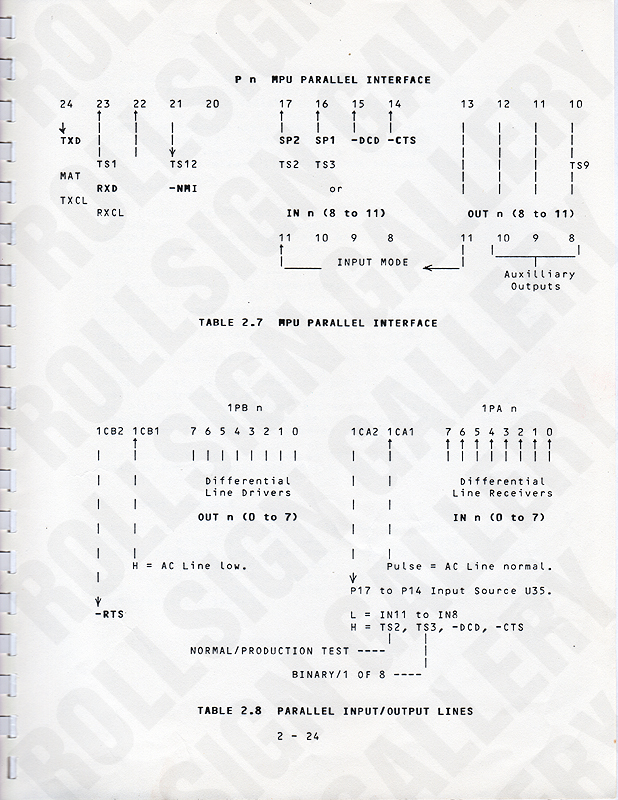

Page 2-24
Table 2.8
Parallel Input /
Output Lines.
Click / tap
to enlarge.
Page 2-24 - Table 2.8, Parallel Input / Output Lines. (Click / tap the X to close.)

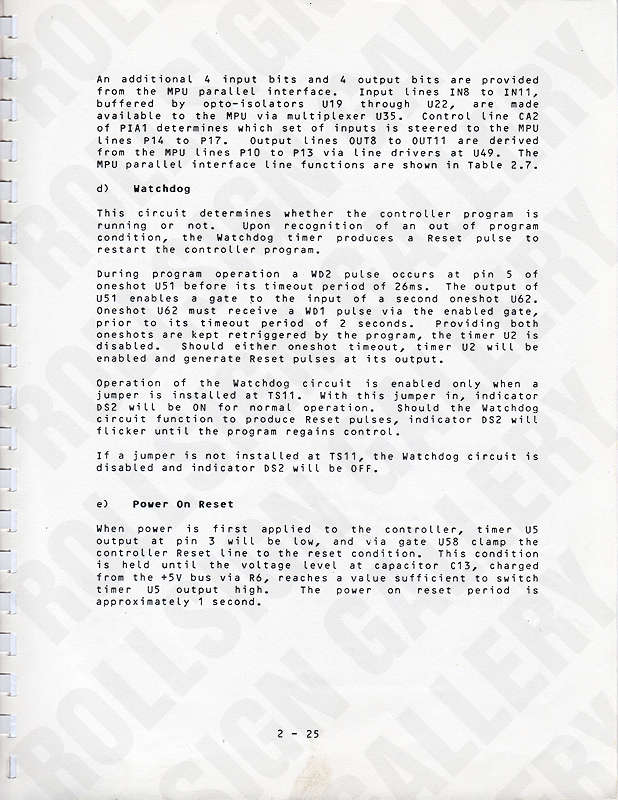

Page 2-25
Notes from Table
2.8, Watchdog,
Power on Reset.
Click / tap
to enlarge.
Page 2-25 - Notes from Table 2.8, Watchdog, Power on Reset. (Click / tap the X to close.)
Page 3-2
Figure 3.1,
Controller
Layout.
Click / tap
to enlarge.
Page 3-2 - Figure 3.1, Controller Layout. (Click / tap the X to close.)
Page 3-3
Table 3.1
Recommended
Spares.
Click / tap
to enlarge.
Page 3-3 - Table 3.1, Recommended Spares. (Click / tap the X to close.)
Page 3-4
Second Line
Maintenance.
Click / tap
to enlarge.
Page 3-4 - Second Line Maintenance. (Click / tap the X to close.)

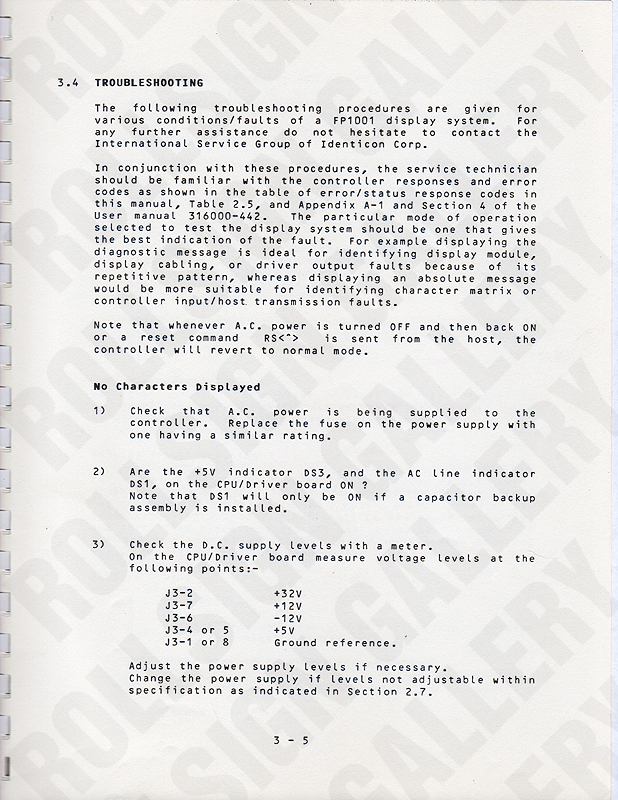

Page 3-5
Troubleshooting
Part 1.
Click / tap
to enlarge.
Page 3-5 - Troubleshooting, Part 1. (Click / tap the X to close.)
Page 3-6
Troubleshooting
Part 2.
Click / tap
to enlarge.
Page 3-6 - Troubleshooting, Part 2. (Click / tap the X to close.)

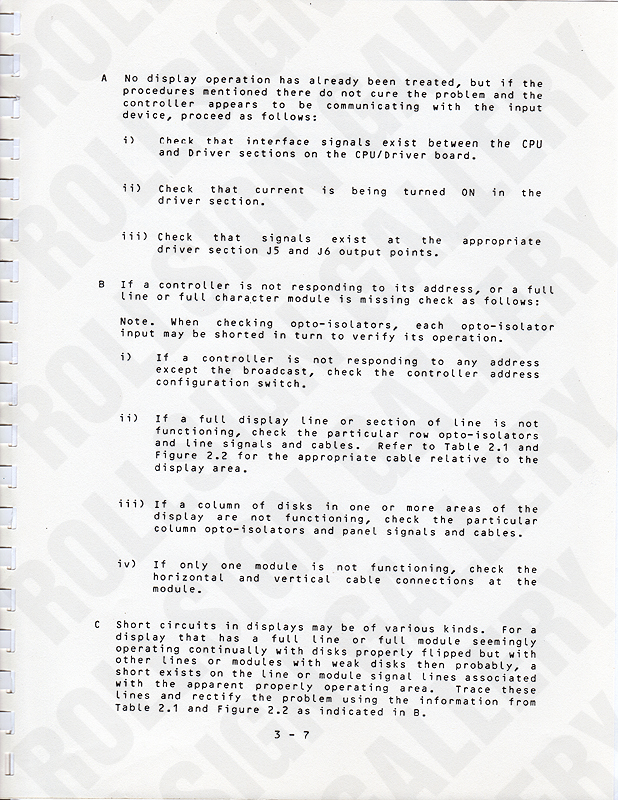

Page 3-7
Troubleshooting
Part 3.
Click / tap
to enlarge.
Page 3-7 - Troubleshooting, Part 3. (Click / tap the X to close.)
Page 3-8
Troubleshooting
Part 4.
Click / tap
to enlarge.
Page 3-8 - Troubleshooting, Part 4. (Click / tap the X to close.)
Appendix:
Matrix 0 Single
Stroke  5 X 7
Display Characters.
Click / tap
to enlarge.
Appendix: Matrix 0 Single Stroke 5 X 7 Display Characters. (Click / tap the X to close.)
Appendix: Matrix 2 Single Row 5 X 1 Characters. (Click / tap the X to close.)
Appendix:
Matrix 1 Double
Stroke  5 X 7
Characters.
Click / tap
to enlarge.
Appendix: Matrix 1 Double Stroke 5 X 7 Characters. (Click / tap the X to close.)

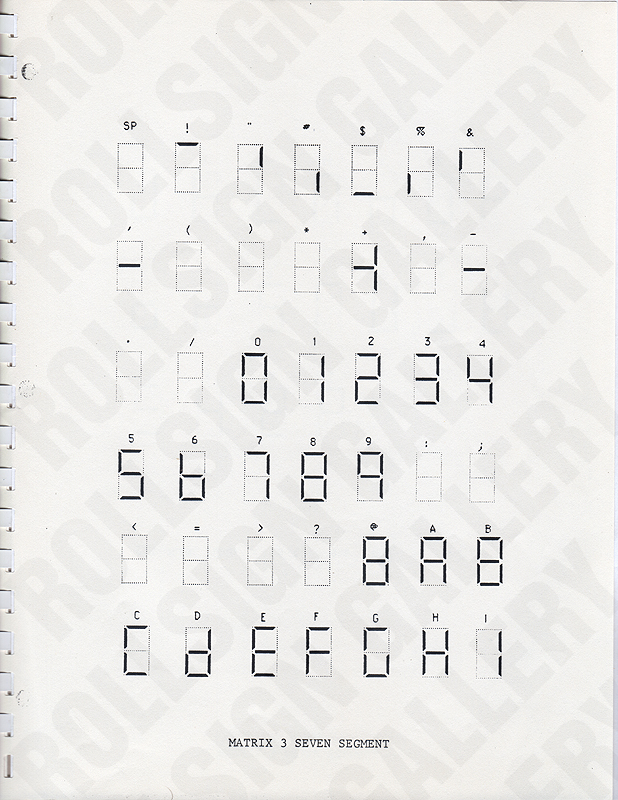

Appendix:
Matrix 3
Seven Segment
Part 1.
Click / tap
to enlarge.
Appendix: Matrix 3 Seven Segment, Part 1. (Click / tap the X to close.)

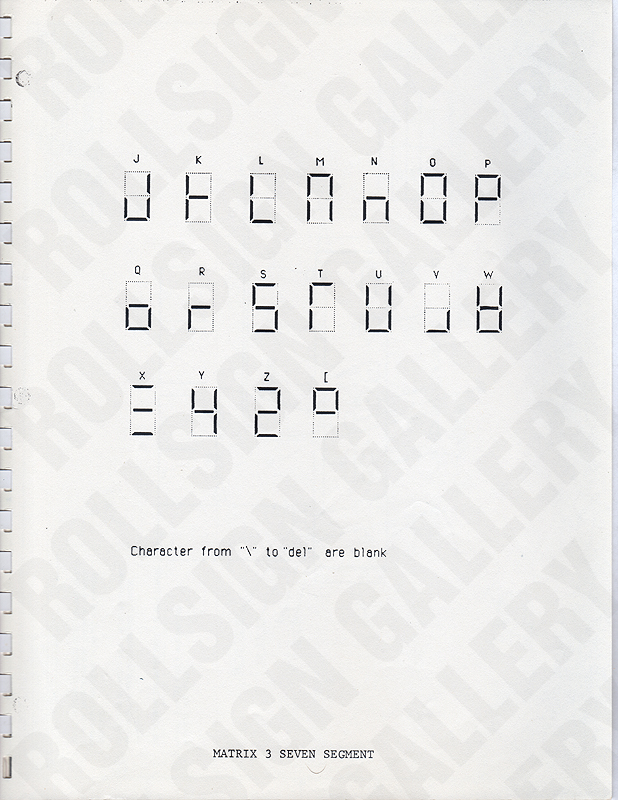

Appendix:
Matrix 3
Seven Segment
Part 2.
Click / tap
to enlarge.
Appendix: Matrix 3 Seven Segment, Part 2. (Click / tap the X to close.)
Drawing 1:
Capacitor Backup
Assy., DC Power
314979-TAB Rev. F
1 of 2.
Click / tap to enlarge.
Drawing 1: Capacitor Backup Assy., DC Power. 314979-TAB Rev. F, 1 of 2. (Click / tap the X to close.)
Drawing 10: VSX
VST 75-3400 Output,
v.1: +5V 10A, v.2:
+12V 1A, v.3: -12V 1A.
Drawing #S-4322B
Click / tap to enlarge.
Outside
Back Cover.
Click / tap
to enlarge.
Drawing 10: VSX VST 75-3400 Output, v.1: +5V @ 10A, v.2: +12V @ 1A, v.3: -12V @ 1A. Drawing #S-4322B.<br>(Click / tap the X to close.)
Identicon Corp. / FP1001 Display Controller - Outside, Back Cover Page. (Click / tap the X to close.)

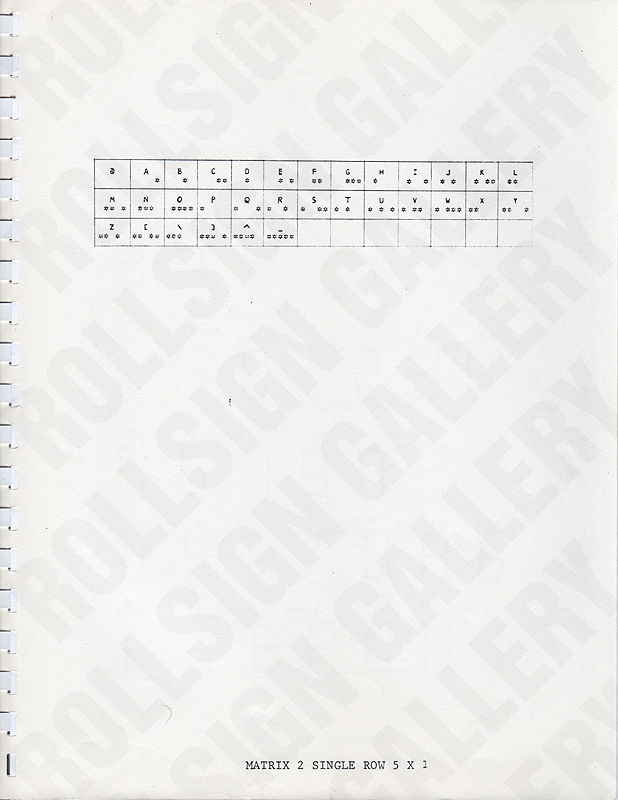

Appendix:
Matrix 2 Single
Row  5 X 1
Characters.
Click / tap
to enlarge.
Page 2-26
Line Voltage
Threshold Detector,
Line Voltage
Adjustment.
Click / tap to enlarge.
Page 2-26 - Line Voltage Threshold Detector, Line Voltage Adjustment. (Click / tap the X to close.)

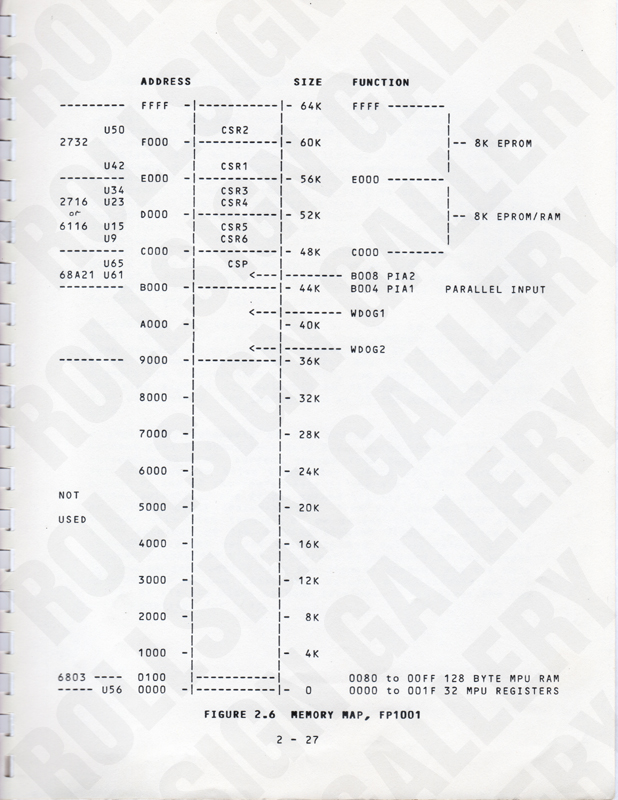

Page 2-27
Figure 2.6
Memory Map,
FP1001.
Click / tap
to enlarge.
Page 2-27 - Figure 2.6, Memory Map, FP1001. (Click / tap the X to close.)

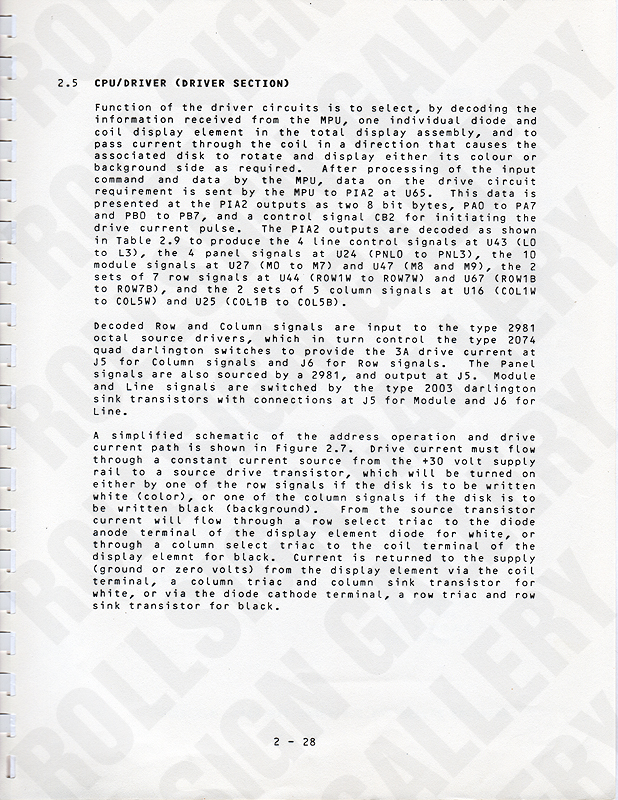

Page 2-28
CPU / Driver
(Driver Section).
Click / tap
to enlarge.
Page 2-28 - CPU / Driver (Driver Section). (Click / tap the X to close.)

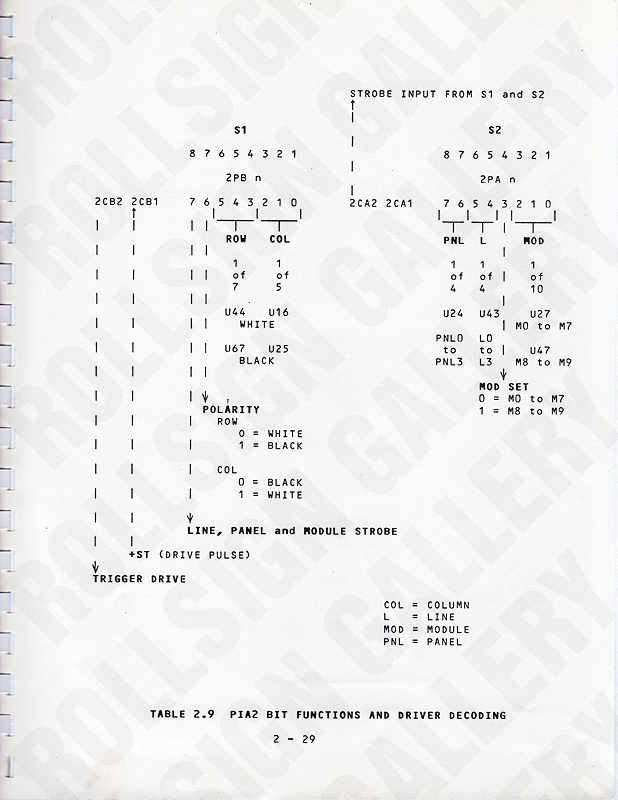

Page 2-29
Table 2.9
PIA2 Bit Functions
& Driver Decoding.
Click / tap
to enlarge.
Page 2-29 - Table 2.9, PIA2 Bit Functions and Driver Decoding. (Click / tap the X to close.)

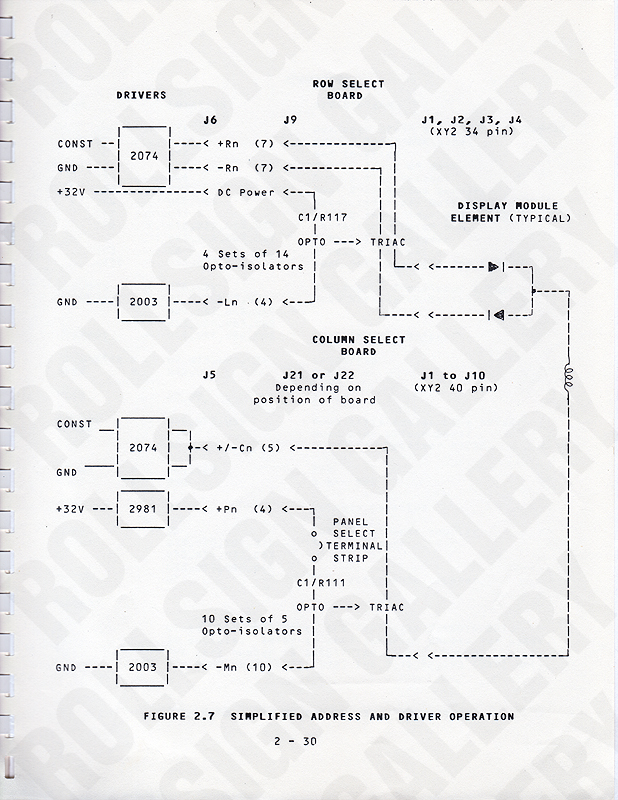

Page 2-30
Figure 2.7
Simplified Address
& Driver Operation.
Click / tap
to enlarge.
Page 2-30 - Figure 2.7, Simplified Address and Driver Operation. (Click / tap the X to close.)

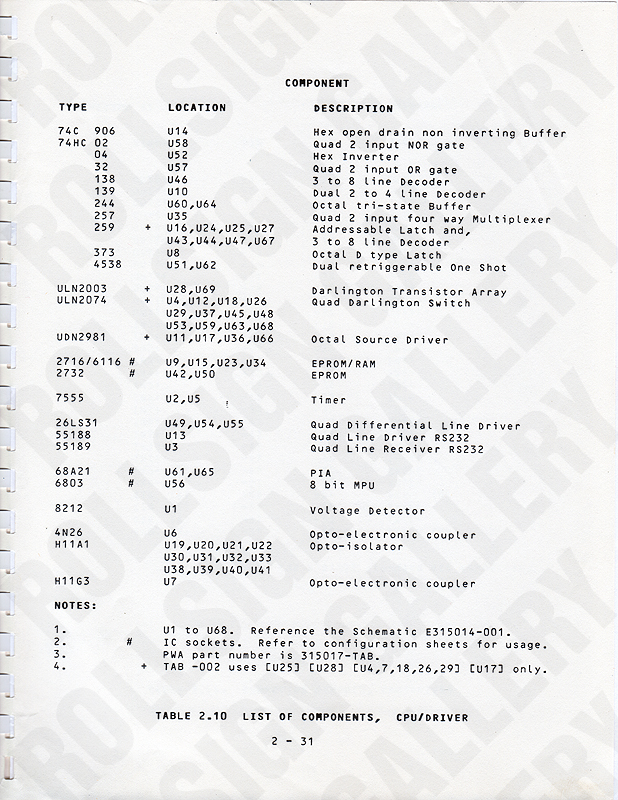

Page 2-31
Table 2.10
List of Components,
CPU / Driver.
Click / tap
to enlarge.
Page 2-31 - Table 2.10, List of Components, CPU / Driver. (Click / tap the X to close.)

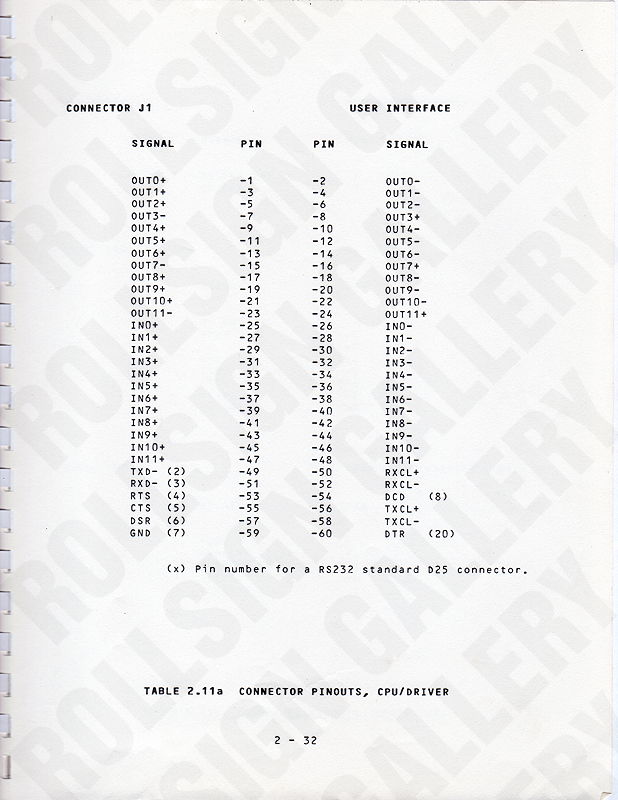

Page 2-32
Table 2.11a
Connector Pinouts,
CPU / Driver.
Click / tap
to enlarge.
Page 2-32 - Table 2.11a, Connector Pinouts, CPU Driver. (Click / tap the X to close.)

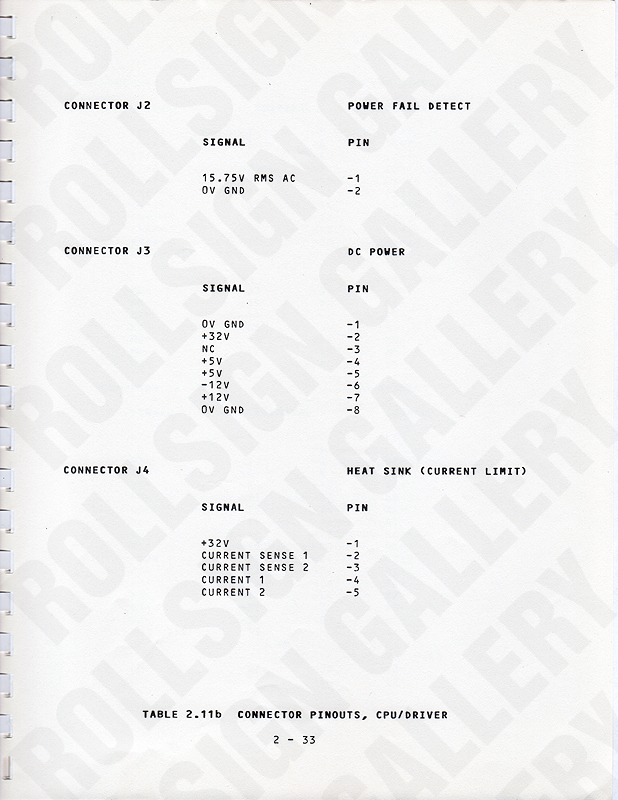

Page 2-33
Table 2.11b,
Connector Pinouts,
CPU / Driver.
Click / tap
to enlarge.
Page 2-33 - Table 2.11b, Connector Pinouts, CPU / Driver. (Click / tap the X to close.)

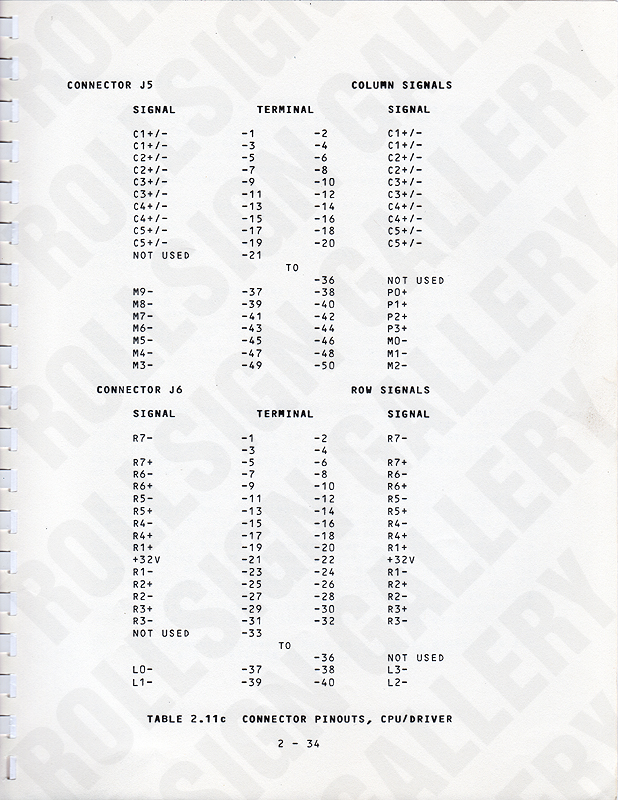

Page 2-34
Table 2.11c
Connector Pinouts,
CPU / Driver.
Click / tap
to enlarge.
Page 2-34 - Table 2.11c, Connector Pinouts, CPU / Driver. (Click / tap the X to close.)

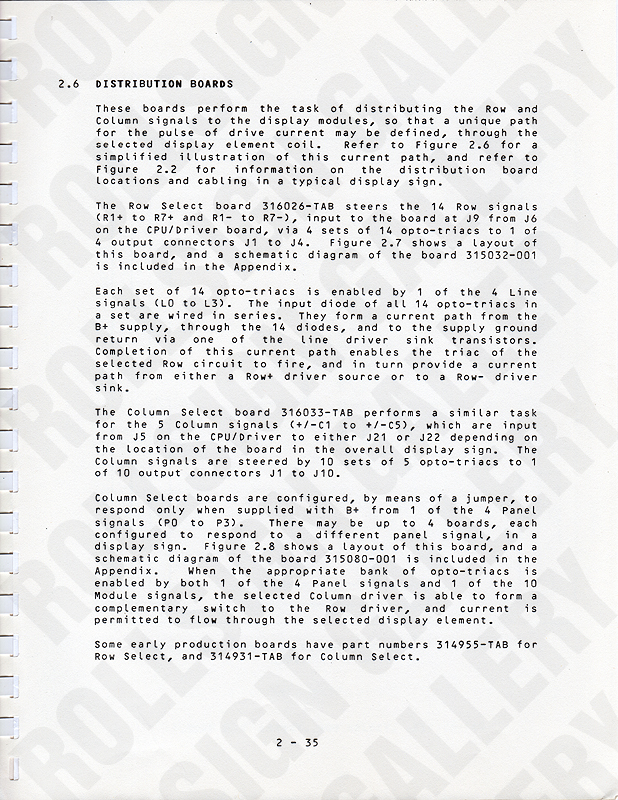

Page 2-35
Distribution
Boards.
Click / tap
to enlarge.
Page 2-35 - Distribution Boards. (Click / tap the X to close.)

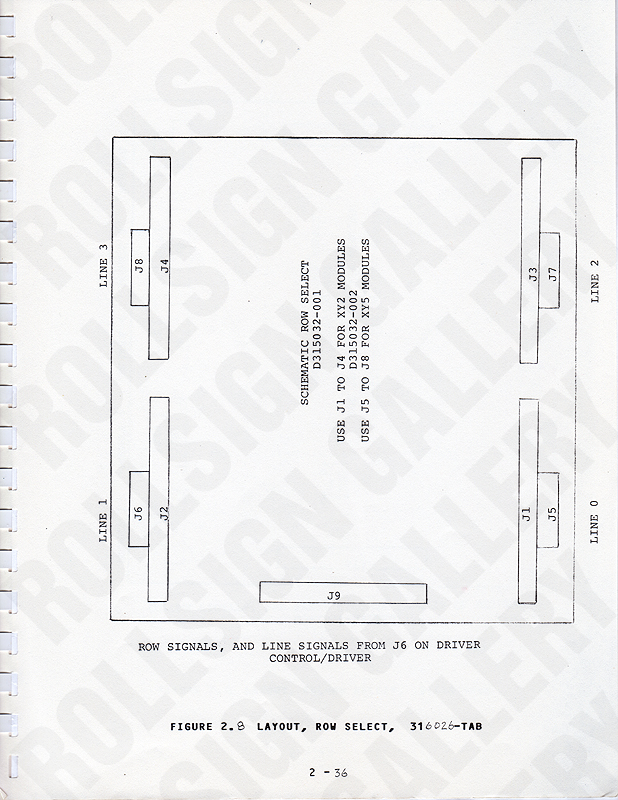

Page 2-36
Figure 2.8
Layout, Row Select,
316026-TAB.
Click / tap
to enlarge.
Page 2-36 - Figure 2.8, Layout, Row Select, 316026-TAB. (Click / tap the X to close.)

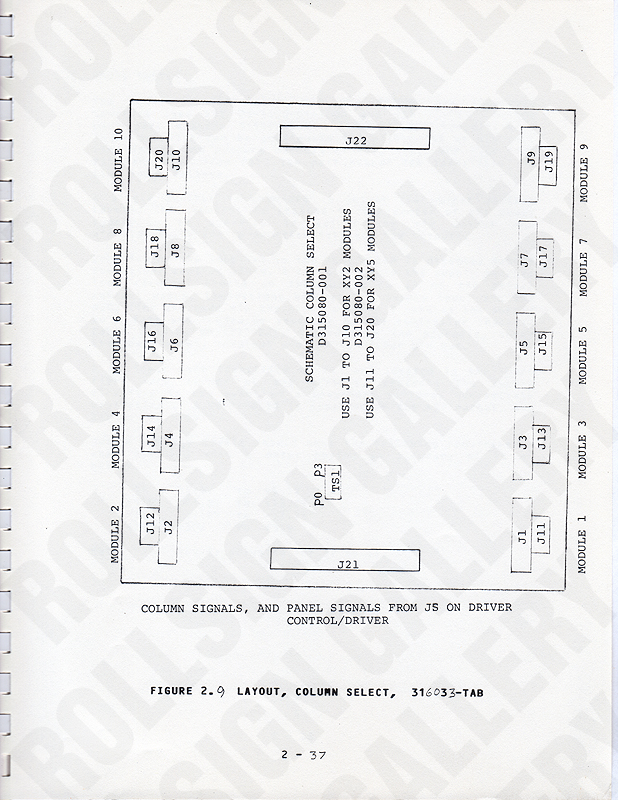

Page 2-37
Figure 2.9
Layout, Column
Select, 316033-TAB.
Click / tap
to enlarge.
Page 2-37 - Figure 2.9, Layout, Column Select, 316033-TAB. (Click / tap the X to close.)

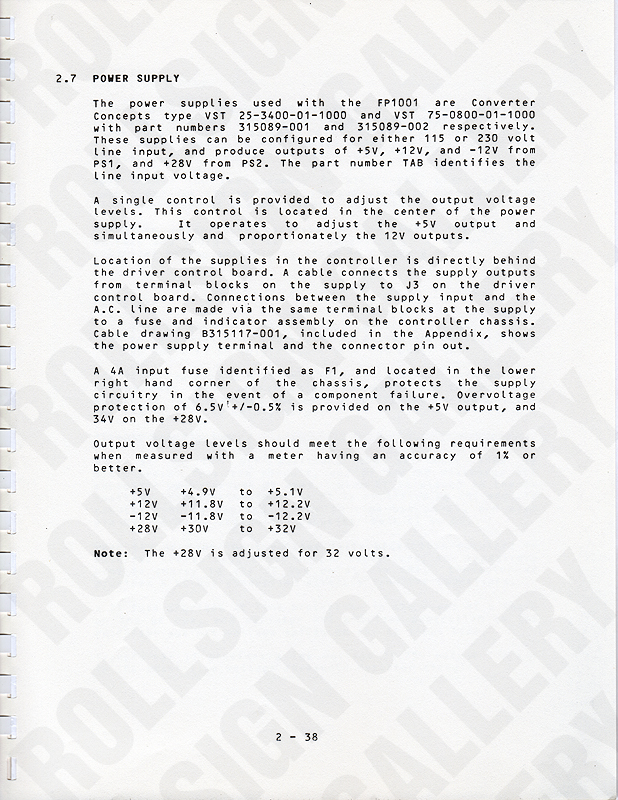

Page 2-38
Power
Supply.
Click / tap
to enlarge.
Page 2-38 - Power Supply. (Click / tap the X to close.)

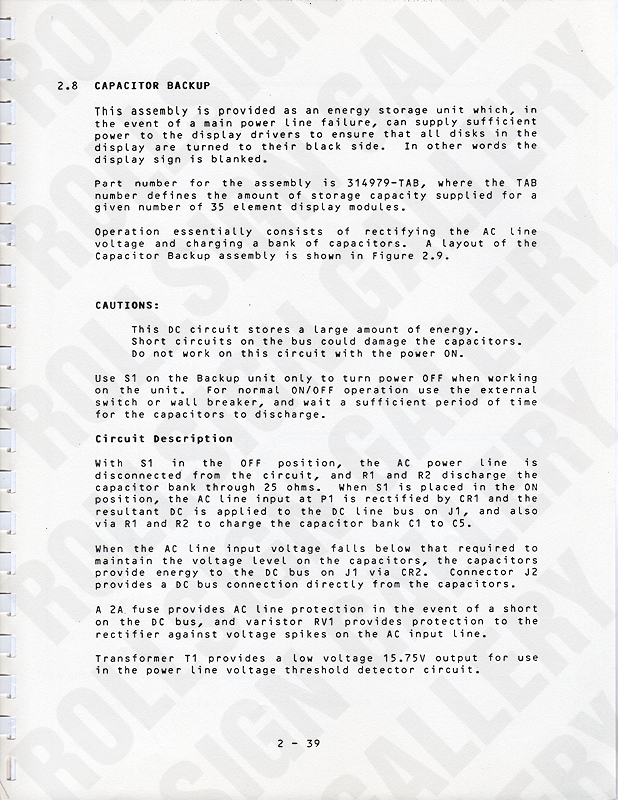

Page 2-39
Capacitor
Backup.
Click / tap
to enlarge.
Page 2-39 - Capacitor Backup. (Click / tap the X to close.)

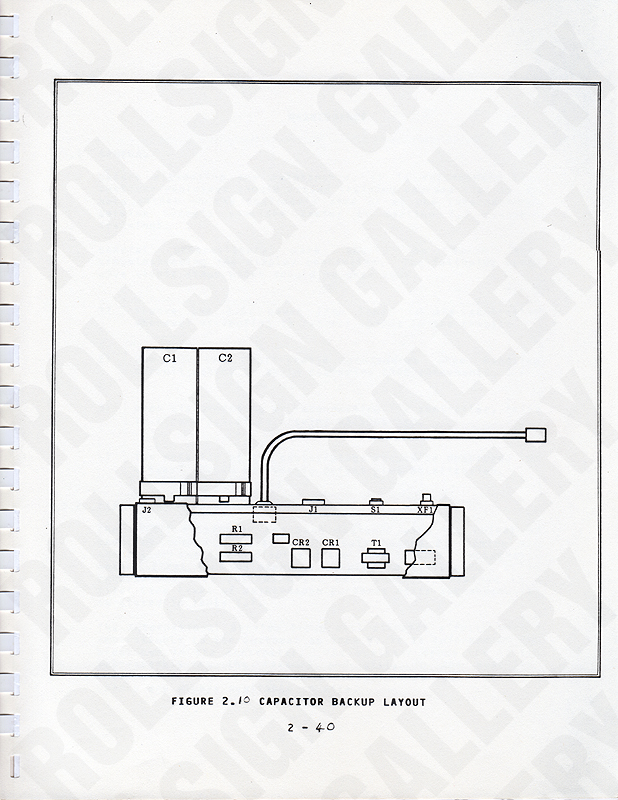

Page 2-40
Figure 2.10
Capacitor
Backup Layout.
Click / tap
to enlarge.
Page 2-40 - Figure 2.10, Capacitor Backup Layout. (Click / tap the X to close.)
Page 3-1
Section 3,
Maintenance:
General, First Line
Maintenance
Click / tap to enlarge.
Page 3-1 - Section 3, Maintenance: General, First Line Maintenance. (Click / tap the X to close.)
Drawing 3A:
Schematic Diagram
F.P.1001 Controller
Board, 315014-001
Original (Left Side).
Click / tap to enlarge.
Drawing 3A: Schematic Diagram, F.P. 1001, Controller Board. 315014-001 Original (Left Side).<br>(Click / tap the X to close.)
Drawing 3B:
Schematic Diagram
F.P.1001 Controller
Board, 315014-001
Original (Right Side).
Click / tap to enlarge.
Drawing 3B: Schematic Diagram, F.P. 1001, Controller Board. 315014-001 Original (Right Side).<br>(Click / tap the X to close.)

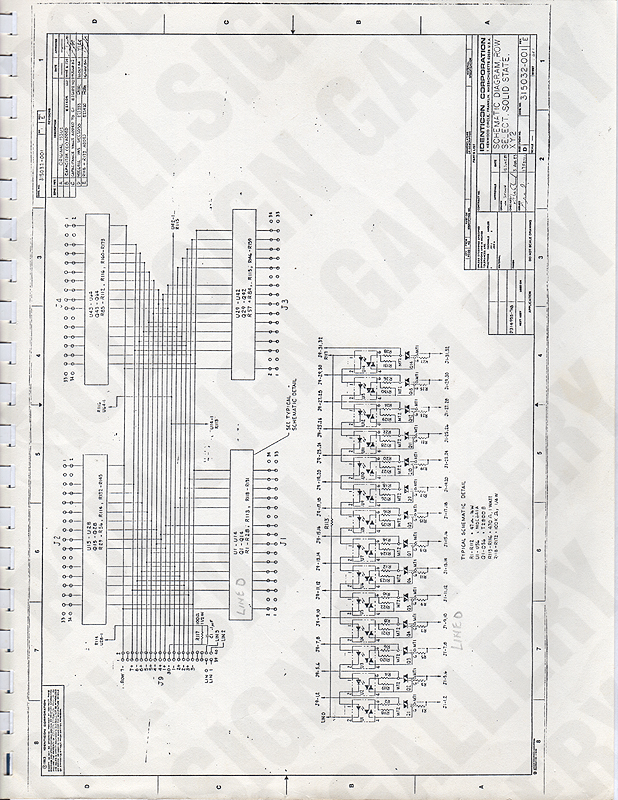

Drawing 4: Schematic Diagram, Row Select, Solid State, XY2. 315032-001 Rev. E. (Click / tap the X to close.)
Drawing 5:
Schematic Diagram,
Column Select,
Solid State, XY2.
315080-001 Rev. D
Click / tap to enlarge.
Drawing 5: Schematic Diagram, Column Select, Solid State, XY2. 315080-001 Rev. D.<br>(Click / tap the X to close.)
Drawing 6:
Controller Assy.,
Type 1001, Basic.
315088-TAB Rev. G
Click / tap
to enlarge.
Controller Assy., Type 1001, Basic. 315088-TAB Rev. G. (Click / tap the X to close.)
Drawing 7:
Cable Assy,
P / S  to Control.
315117-001
Click / tap
to enlarge.
Drawing 7: Cable Assy., P / S to Control. 315117-001. (Click / tap the X to close.)
Drawing 8:
VST 50/75 - 00/01
Input, Rev. A (2/9/
82), Rev. B (5/25/82).
Drawing #1064B
Click / tap to enlarge.
Drawing 8: VST 50/75 - 00/01 Input, Rev. A (2/9/82), Rev. B (5/25/82). Drawing #1064B.<br>(Click / tap the X to close.)
Drawing 4:
Schematic Diagram,
Row Select, Solid
State, XY2.
315032-001 Rev. E
Click / tap to enlarge.
Drawing 9:
VST 50/75 - 0800
Output +28V @ 3A.
Drawing #4275B
Click / tap
to enlarge.
Drawing 9: VST 50/75 - 0800 Output +28V @ 3A. Drawing #4275B. (Click / tap the X to close.)

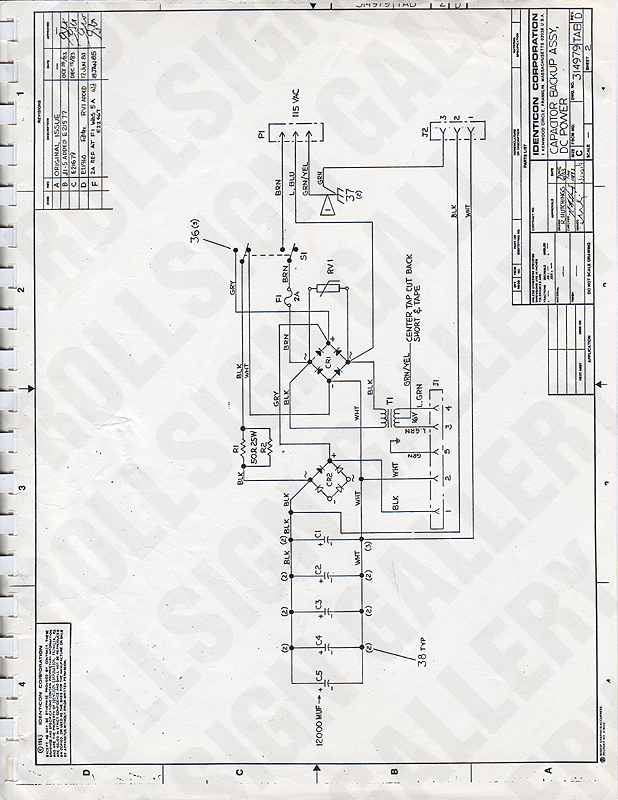

Drawing 2:
Capacitor Backup
Assy., DC Power
314979-TAB Rev. D
2 of 2.
Click / tap to enlarge.
Drawing 2: Capacitor Backup Assy., DC Power. 314979-TAB Rev. D, 2 of 2. (Click / tap the X to close.)
Appendix:
Reference
Drawings List.
Click / tap
to enlarge.
Appendix: Reference Drawings List. (Click / tap the X to close.)
To see the various Ferranti-Packard sign
panels in my collection, click or tap HERE.
