LUMINATOR Products - Liquid Crystal (LCD) Series:
LUMINATOR Products - HORIZON LED Series:
| (Hover over or tap each thumbnail image to enlarge) |

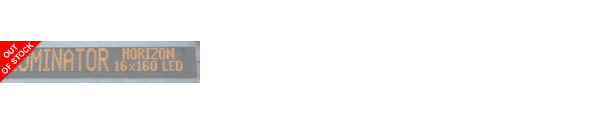

Luminator Horizon Orange LED Full Size Front Sign - 16 x 160
This full matrix LED sign has a display of 16 x 160 pixels. This sign is a slave unit and does NOT
contain the memory for the system. Its physical size is 71.5w x 3.5d x 12h inches and weighs
about 32 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data through-out, and a nylon 796764-1 threaded 4-pin panel
mount receptacle connector which also supplies power to the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the system. Its physical size is 71.5w x 3.5d x 12h inches and weighs
about 32 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data through-out, and a nylon 796764-1 threaded 4-pin panel
mount receptacle connector which also supplies power to the sign.
Email for Prices, and Shipping & Processing.

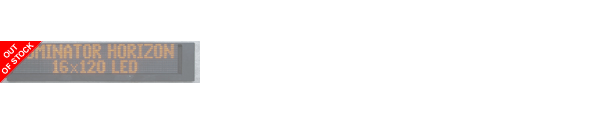

Luminator Horizon Orange LED Narrow Front Sign - 16 x 120
This full matrix LED sign has a display of 16 x 120 pixels. This sign is a slave unit and does NOT
contain the memory for the system. Its physical size is 55.5w x 3.5d x 12h inches and weighs
about 26 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power & data throughout, and a nylon 796764-1 threaded 4-pin panel mount
receptacle connector which also supplies power to the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the system. Its physical size is 55.5w x 3.5d x 12h inches and weighs
about 26 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power & data throughout, and a nylon 796764-1 threaded 4-pin panel mount
receptacle connector which also supplies power to the sign.
Email for Prices, and Shipping & Processing.
Luminator Horizon LED Side Sign - 8 x 96
Luminator Horizon LED Side Route Number Sign - 16 x 48
This full matrix LED sign has a display of 16 x 48 pixels. This sign is a slave unit and does NOT
contain the memory for the sign system. Its physical size is 27w x 3d x 10h inches and weighs
about 8 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the sign system. Its physical size is 27w x 3d x 10h inches and weighs
about 8 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 1 |

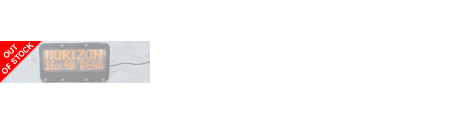

Luminator Horizon LED Rear Sign - Body Mount, Nylon (plastic) Body - 16 x 48
This full matrix LED sign has a display of 16 x 48 pixels. This sign is a slave unit and does NOT
contain the memory for the sign system. Its physical size is 22.5w x 4d x 13h inches and weighs
about 13 pounds. It uses a single nylon 788194-1 threaded 7-pin panel mount receptacle connector
which supplies both power and data to the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the sign system. Its physical size is 22.5w x 4d x 13h inches and weighs
about 13 pounds. It uses a single nylon 788194-1 threaded 7-pin panel mount receptacle connector
which supplies both power and data to the sign.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 0 |

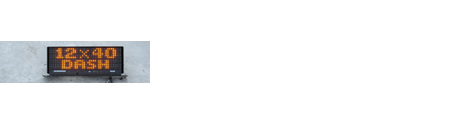

Luminator Horizon LED Dash Sign - 12 x 40
This full matrix LED sign has a display of 12 x 40 pixels. This sign is a slave unit and does NOT
contain the memory for the sign system. Its physical size is 19w x 3.5d x 7h inches (8h inches boxed)
and weighs about 7 pounds. It uses two nylon 7-pin free hanging receptacle connectors which
supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the sign system. Its physical size is 19w x 3.5d x 7h inches (8h inches boxed)
and weighs about 7 pounds. It uses two nylon 7-pin free hanging receptacle connectors which
supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 1 |
This full matrix LED sign has a display of 8 x 90 pixels. This sign is a slave unit and does NOT
contain the memory for the sign system. Its physical size is 53.5w x 3d x 7.5h inches and weighs
about 15 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the sign system. Its physical size is 53.5w x 3d x 7.5h inches and weighs
about 15 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
LUMINATOR Products - Keypads & Accessories:
| (Hover over or tap each thumbnail image to enlarge) |

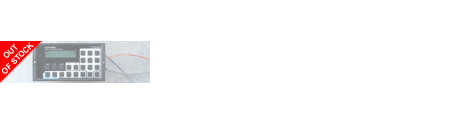

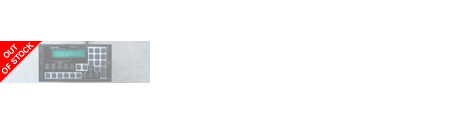

Luminator Operator's Display and Keypad - ODK1
This first generation keypad features an LCD yellow backlit screen with a 2 x 20 character display. This unit is
a slave unit and does NOT contain the memory for the sign system. It features three Molex pin and socket
'quick release' connectors: Two 2-pin for data transfer and one 4-pin to provide power to the unit and to
activate the driver's emergency message feature. Its physical size: 8.5w x 3d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
a slave unit and does NOT contain the memory for the sign system. It features three Molex pin and socket
'quick release' connectors: Two 2-pin for data transfer and one 4-pin to provide power to the unit and to
activate the driver's emergency message feature. Its physical size: 8.5w x 3d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 0 |

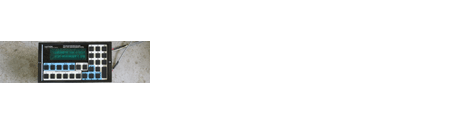

Luminator Operator's Display and Keypad - ODK2 (Standard facing)
This second generation keypad features a vacuum flourescent screen with a 2 x 20 character display. This unit
is a slave unit and does NOT contain the memory for the sign system. It features three Molex pin and socket
'quick release' connectors: Two 2-pin for data transfer and one 4-pin to provide power to the unit and to
activate the driver's emergency message feature. Its physical size: 8.5w x 2.5d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
is a slave unit and does NOT contain the memory for the sign system. It features three Molex pin and socket
'quick release' connectors: Two 2-pin for data transfer and one 4-pin to provide power to the unit and to
activate the driver's emergency message feature. Its physical size: 8.5w x 2.5d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 11 |

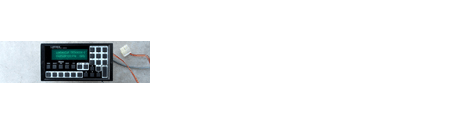

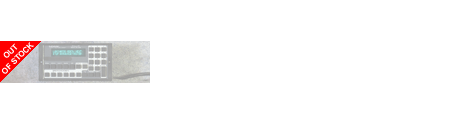

Luminator Operator's Display and Keypad - ODK3 (Standard facing)
This third generation keypad features a vacuum flourescent screen with a 16 x 128 full matrix display. This
unit DOES contain the memory for the sign system. It uses two nylon 788194-1 threaded 7-pin panel mount
receptacle connectors which supplies both power and data to and from the unit & one 2-pin Molex connector to
activate the driver's emergency message feature. Its physical size: 8.5w x 3d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
unit DOES contain the memory for the sign system. It uses two nylon 788194-1 threaded 7-pin panel mount
receptacle connectors which supplies both power and data to and from the unit & one 2-pin Molex connector to
activate the driver's emergency message feature. Its physical size: 8.5w x 3d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 0 |
| NUMBER AVAILABLE: 0 |
| New Old Stock or Used, ALL are fully functional and work as designed! |
Luminator Operator's Display and Keypad - ODK2 (Next Stop Announcement facing)
This second generation keypad has the same features and connectors as the ODK2 above, but has the facing
showing the controls for an on-board Passenger Information and Next Stop Announcement system (not
included). It can operate as a stand-alone keypad just like the standard ODK2. This is also a slave unit and does
NOT contain the memory for the sign system. Its physical size: 8.5w x 2.5d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
showing the controls for an on-board Passenger Information and Next Stop Announcement system (not
included). It can operate as a stand-alone keypad just like the standard ODK2. This is also a slave unit and does
NOT contain the memory for the sign system. Its physical size: 8.5w x 2.5d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 8 NEW 11 Used |
| NUMBER AVAILABLE: 0 |
Find something you like? Have any questions? E-mail me at:
COLOURED NUMBER CODES:
FF0000 = 0 RED (Bright Red)
FFCC00 = 1 ORANGE (Pumpkin Spice)
FFFF99 = 2 YELLOW (Pale Yellow)
99FF99 = 3+ GREEN (Misty Green)
FF0000 = 0 RED (Bright Red)
FFCC00 = 1 ORANGE (Pumpkin Spice)
FFFF99 = 2 YELLOW (Pale Yellow)
99FF99 = 3+ GREEN (Misty Green)

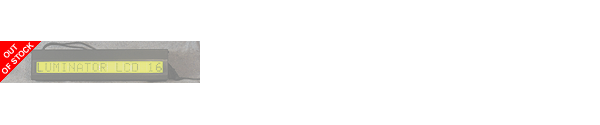

Luminator Side / Interior 16 Character LCD Sign
Luminator ODK Mounting frame for an RTS bus
This sign has a 16 character "liquid crystal display" (LCD) with a 5 x 7 pixel grid for each character.
This sign is a slave unit and does NOT contain the memory for the sign system. Its physical size is
30.5w x 5d x 6.75h inches and weighs about 16 pounds. It uses two nylon 7-pin free hanging receptacle
connectors which supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
This sign is a slave unit and does NOT contain the memory for the sign system. Its physical size is
30.5w x 5d x 6.75h inches and weighs about 16 pounds. It uses two nylon 7-pin free hanging receptacle
connectors which supplies both power and data to and from the sign.
Email for Prices, and Shipping & Processing.
This plastic formed frame is compatable with all ODK models shown above. Its back is designed
to conform to the inside of the front destination sign access door of an RTS model bus. If the
back of this frame is flattened, it could conform to other model buses as well. Its physical size
is 9w x 1.5d x 5h inches and weighs less than one pound.
Email for Prices, and Shipping & Processing.
to conform to the inside of the front destination sign access door of an RTS model bus. If the
back of this frame is flattened, it could conform to other model buses as well. Its physical size
is 9w x 1.5d x 5h inches and weighs less than one pound.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 0 |
| NUMBER AVAILABLE: 2 |

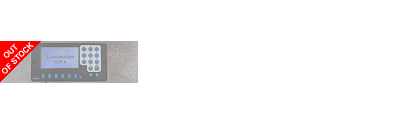

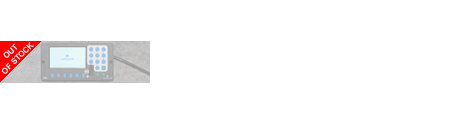

Luminator Operator's Display and Keypad - ODK4
This fourth generation keypad features a 4.3 inch / 480 x 272 color LCD display with touch screen abilities. This
unit DOES contain the memory for the sign system. It uses a 9-pin female Dsub connector to provide power and
data to the unit (J1), a 15 pin male Dsub connector for emergency switch interface, lighting control and other
features (J4). J2 is used for direct signaling. J3 is not to be used. Size: 7.75w x 1.5d x 4 inches. Weight: 14 oz.
NOTE: This unit requires a special cable to convert the 9-pin Dsub connector to a 7-pin receptacle connector.
Email for Prices, and Shipping & Processing.
unit DOES contain the memory for the sign system. It uses a 9-pin female Dsub connector to provide power and
data to the unit (J1), a 15 pin male Dsub connector for emergency switch interface, lighting control and other
features (J4). J2 is used for direct signaling. J3 is not to be used. Size: 7.75w x 1.5d x 4 inches. Weight: 14 oz.
NOTE: This unit requires a special cable to convert the 9-pin Dsub connector to a 7-pin receptacle connector.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 0 |
| NUMBER AVAILABLE: 3 |
| Quantity numbers are temporarily disabled. Please email for availability. |

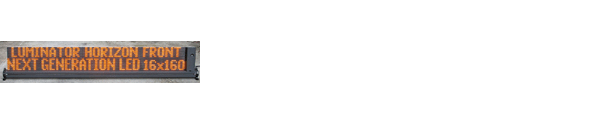

Luminator Horizon Next Generation (Gen 4) Orange LED Front Sign - 16 x 160
This full matrix LED sign has a display of 16 x 160 pixels. This sign is a slave unit and does NOT
contain the memory for the system. Its physical size is 71.5w x 3.5d x 12h inches and weighs
about 32 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data through-out, and a nylon 796764-1 threaded 4-pin panel
mount receptacle connector which also supplies power to the sign.
Email for Prices, and Shipping & Processing.
contain the memory for the system. Its physical size is 71.5w x 3.5d x 12h inches and weighs
about 32 pounds. It uses two nylon 788194-1 threaded 7-pin panel mount receptacle connectors
which supplies both power and data through-out, and a nylon 796764-1 threaded 4-pin panel
mount receptacle connector which also supplies power to the sign.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 1 |
Luminator Operator's Display and Keypad - ODK3 (Next Stop Announcement facing)
| NUMBER AVAILABLE: 0 |
This third generation keypad has the same features and connectors as the ODK3 above, but has the facing
showing the controls for an on-board Passenger Information and Next Stop Announcement system (not
included). It can operate as a stand-alone keypad just like the standard ODK3. This is also a control unit and
DOES contain the memory for the sign system. Its physical size: 8.5w x 3d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
showing the controls for an on-board Passenger Information and Next Stop Announcement system (not
included). It can operate as a stand-alone keypad just like the standard ODK3. This is also a control unit and
DOES contain the memory for the sign system. Its physical size: 8.5w x 3d x 4.5h inches. Weight: 2 pounds.
Email for Prices, and Shipping & Processing.
| NUMBER AVAILABLE: 0 |
Luminator Operator's Display and Keypad - MCU
This next generation keypad has the same physical features as the ODK4 above, but its operating system is
designed to make it compatible with all Luminator Next Generation LED signs as well as modern TwinVision
Smart Series signs, depending on the programming from the modern MIE software. It can still work with the
older IPS software, but is limited to the abilities of that program. Size: 7.75w x 1.5d x 4 inches. Weight: 14 oz.
NOTE: This unit requires a special cable to convert the 9-pin Dsub connector to a 7-pin receptacle connector.
Email for Prices, and Shipping & Processing.
designed to make it compatible with all Luminator Next Generation LED signs as well as modern TwinVision
Smart Series signs, depending on the programming from the modern MIE software. It can still work with the
older IPS software, but is limited to the abilities of that program. Size: 7.75w x 1.5d x 4 inches. Weight: 14 oz.
NOTE: This unit requires a special cable to convert the 9-pin Dsub connector to a 7-pin receptacle connector.
Email for Prices, and Shipping & Processing.
| (Including LUMINATOR LIDS and TRANSIGN/GULTON Hybrid signs) |
| (Including Pocatec Ltee. signs) |
| EXTRA SERVICES OFFERED |
| EXTRA SERVICES OFFERED |
